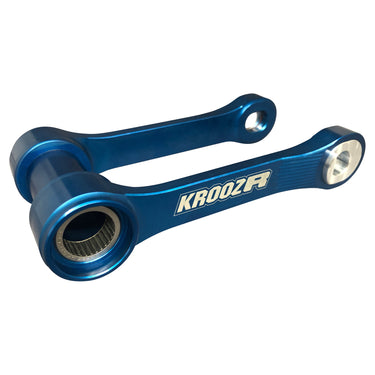

Suzuki RMZ450 Performance Linkage

Fits 2018-2020 Model Suzuki RMZ450

Krooztune’s Brand New Adjustable Performance Linkage Arms are CNC-machined from billet aluminum and are designed to stiffen up the initial linkage curve and improve the geometry of the chassis. This results in a much more stable ride at high speed and during bumpy corner entry.

Having a ‘high rear end feel’ whilst riding this bike gives the bike tremendous turn in for tight slow corners but takes away greatly the high speed stability and stable nature needed for fast sweeping bumpy turns. This all new linkage design allows you to test different lowering / Linkage arm lengths with the use of clip in / clip out buttons on the end of the arm. This gives you greater tunability to get this exactly how you like it. All settings pre tested and in instructions. Each linkage will be supplied with 4 buttons giving you 4 different length options.

Adjustable end Button resulting in 1,2,3,4 mm longer than OEM.  Most cases we are using 1mm option (pre fitted) for best outcome in performance. Lowers the rear and sits flatter under big braking bumps.  We had excellent results with juniors and sand specialists with this linkage.

Includes 2 Buttons that are can be flipped around to achieve the result below.

Button 1 Fitted - 1mm and 4mm option (Number 1 to Rear of linkage =1mm)

Button 2 Fitted - 2mm and 3mm option (Number 2 to Rear of linkage =2mm)

Instruction Provided

Part # KT-RMZ18PL
