Honda Road

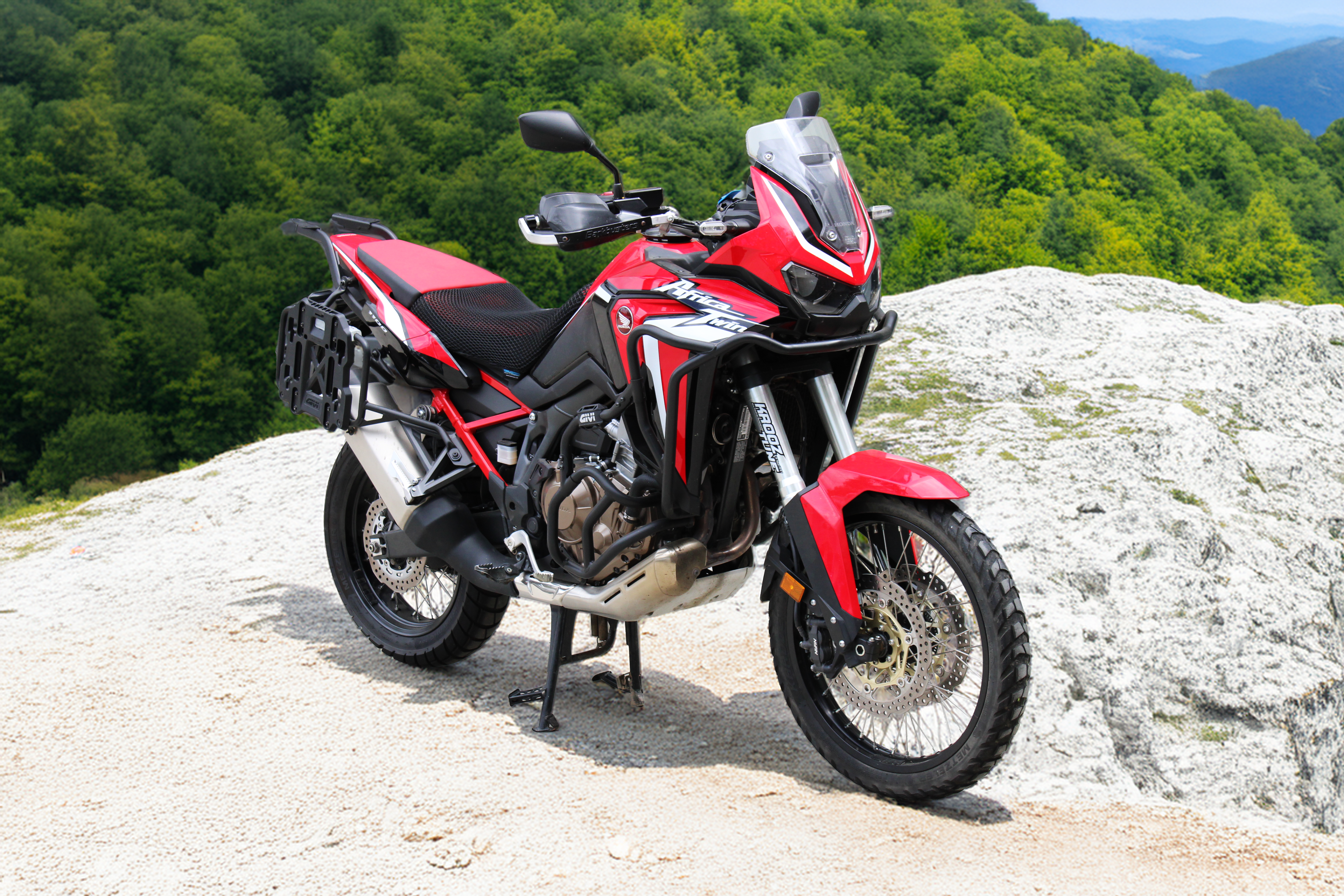

This kit Fits: Honda Africa Twin CRF1000 2016-2021 models

• 2020/21 CRF1100A CRF1100D
• 2019 CRF1000A
• 2018 CRF1000A
• 2017 CRF1000 CRF1000A CRF1000D
• 2016 CRF1000 CRF1000A CRF1000D

Adventure Sport Models are available in 50mm Only Option.  Although you can use a 30mm Linkage (available seperately) we do not have a side stand option at this present time to match.

Our Honda Africa Twin lowering kit is designed to lower your motorcycle in 3 variants

• -30mm
• -50mm
• Adventure Sports -50mm only

The main focus on designing this kit was to retain the Front to rear balance of the bike whilst lowering the bike closer to the ground . The common mistake of lowering the bike at one end only results in a bike that is out of balance, hard to steer and greatly affects the handling / chassis characteristics of this Motorcycle.

We have designed and manufactured this complete kit in house here at Krooztune from start to finish, CNC machined in house here in Australia.

 *Adventure Sport Models are available in 50mm Only Option

 This Kit Features:

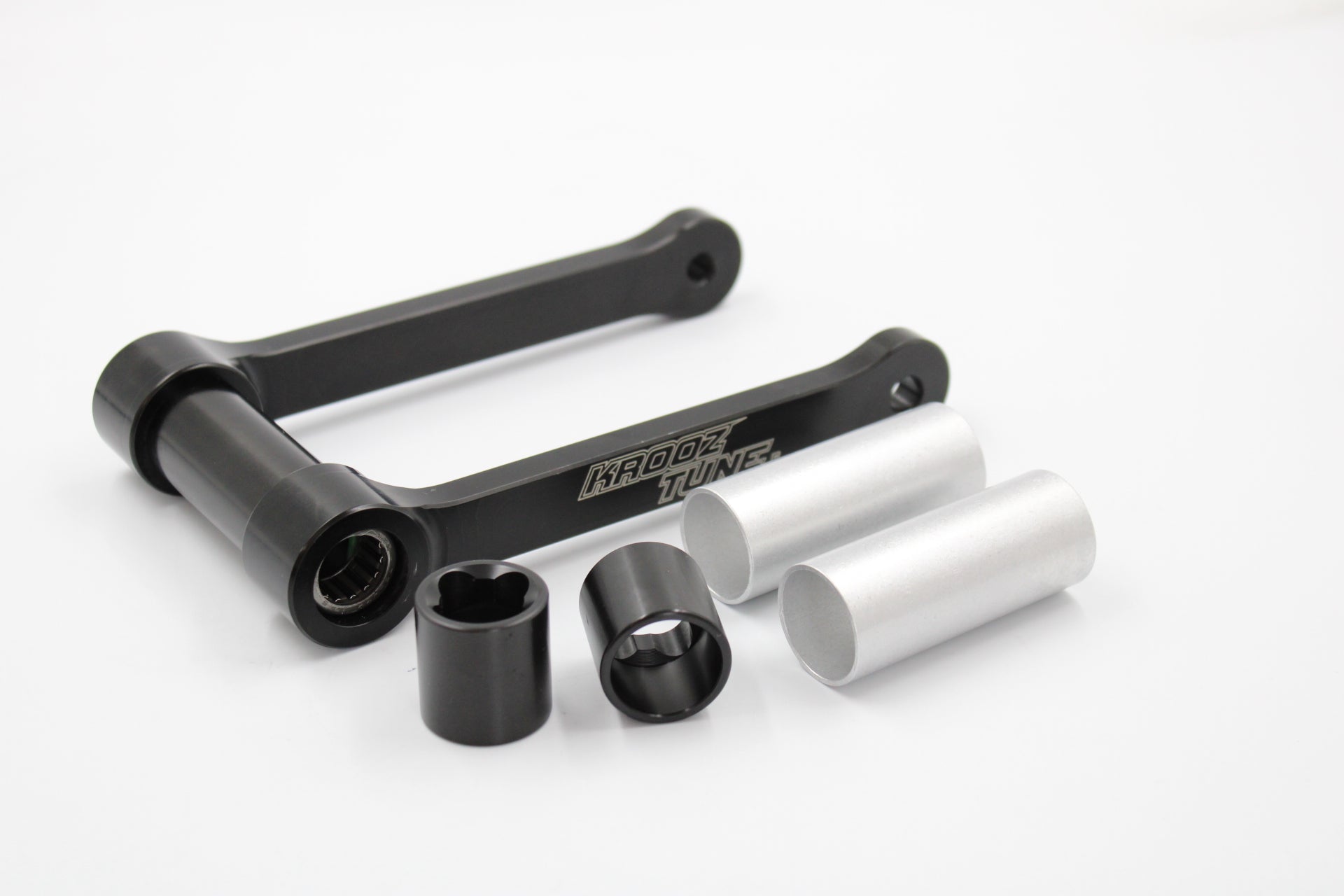

BILLET ALLOY REAR LINKAGE

The Rear of this bike is lowered using a Billet Alloy Linkage arm machined from high grade 6061 Alloy. Once fitted this will lower the rear end of your bike by either 30 or 50mm depending on kit selected at time of purchase.

Lowering the front end of this bike needs to be done at a Motorcycle Repair shop or via a qualified experienced mechanic with suspension skillset.

Our Honda Africa Twin Lowering Kit kit has all the parts and instructions necessary to complete this task easily and most of all accurately and professionally to retain the balance and OEM performance in this Motorcycle.

BILLET SIDESTAND

Krooztune Engineered CNC Machined Billet side stand to 30mm and 50mm lowered Honda Africa Twin CRF1000.

*Available also to suit a 50mm lowered CRF1000 Adventure Sport. 30mm Stands are underway and in production.

Manufactured using High Grade 6061 Alloy that simply bolts on and replaces the standard unit with a shorter length to retain the correct lean angle once parked.

We include centre stand modification instruction and sleeves with every billet sidestand. The centre stand will need custom modification to better suit the lowered bike. It will work ok with a lowered bike, but it is a little more difficult to operate and to get the bike into the upright centre stand position.

We provide the parts and instructions to complete these modifications to the centre stand. This involves fabricating the stand and cutting out the lowered amount. We provide steel sleeves (as shown in picture) for ease of alignment and welding, resulting in a factory level job that is super strong.  Centre stand sleeves/parts are included with the kit and are detailed in the fully pictured instruction manual.

LOWERING KIT FEATURES

This Linkage/Fork kit Lowers the 2011-2018 Model Honda CBR250/300.

(Fits models 2011- before Honda changed to direct mount to swingarm with no linkage.)

Available in either 30mm or 50mm at the rear of this bike and 30mm in the front forks using our ‘Krooztune' Lowering kit. The kit comes with a linkage with bearings pre fitted. You will require the standard seals and sleeve out of the Original linkage to fit this part and it basically just bolts in as a replacement over the standard linkage.

The forks require a simple disassemble and installation of our 30mm destrokers and pre load spacers.  We slide the forks up through the triple clamps a further 20mm to match the rear (as our destrokers only lower the forks 30mm). This additional 20mm is only needed for 50mm kit.

Kit Includes

• Lowering Linkage
• Shorter Side Stand
• Preload tubes
• internal fork De-Strokers

HONDA CRF1000 Africa Twin Lowering Linkage

BILLET ALLOY LINKAGE

This kit Fits: Honda Africa Twin CRF1000 2016-2020 models

• 2020 CRF1100A CRF1100D 2019 CRF1000A
• 2018 CRF1000A
• 2017 CRF1000 CRF1000A CRF1000D
• 2016 CRF1000 CRF1000A CRF1000D

The 30mm Linkage will fit all Adventure sport Models also.  The 50mm Linkage will fit as well, although slight modification to the shock clevis is required for clearance. All instruction included.

The Rear of this bike is lowered using a Billet Alloy Linkage arm machined from high grade 6061 Alloy. Once fitted this will lower the rear end of your bike by either 30 or 50mm depending on Linkage selected at time of purchase.

 Available in 2 options

-30mm

-50mm

 PARTS INCLUDED IN THE KIT

• Lowering linkage
• Instructions

HONDA CB 500 F/X/R LOWERING KIT

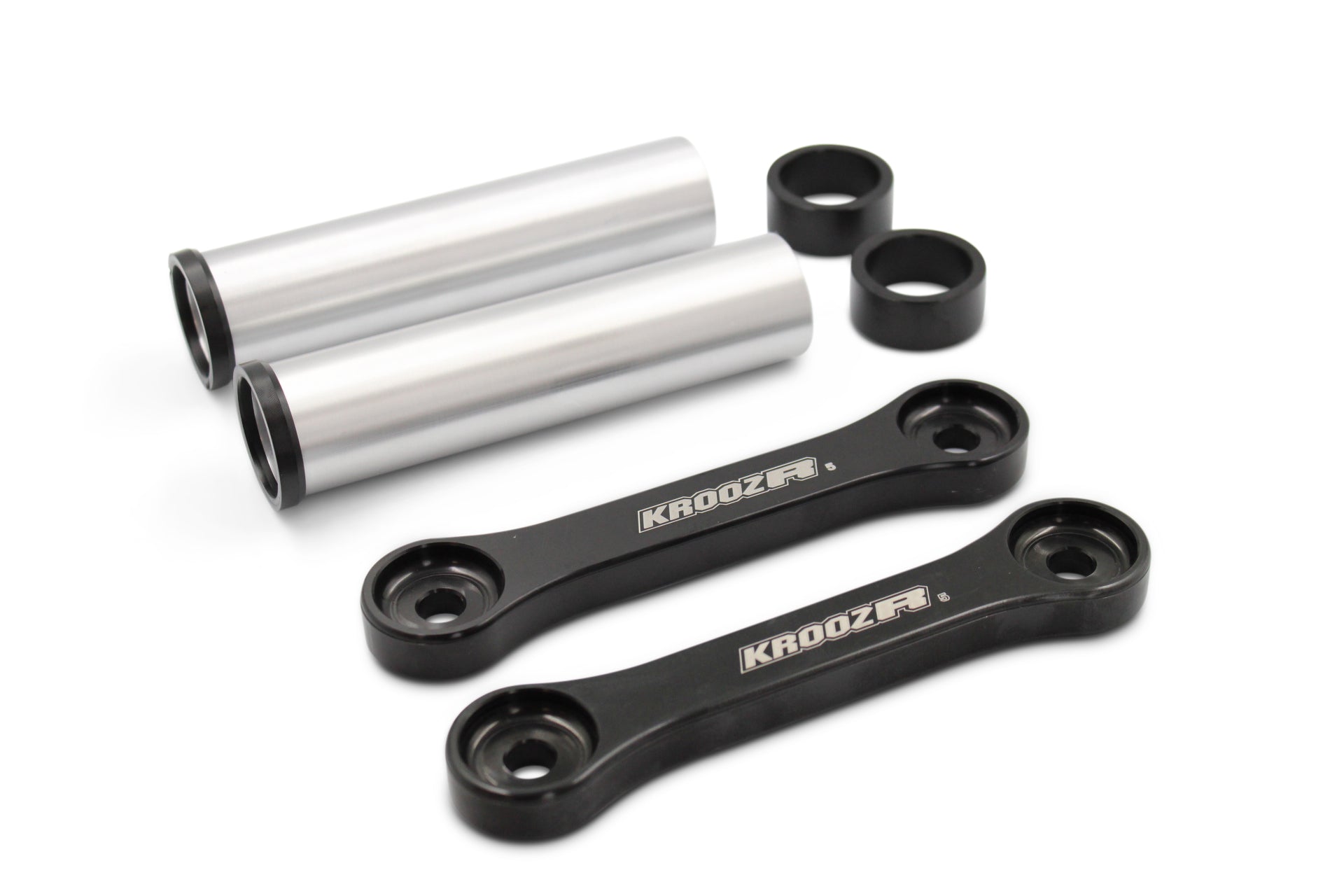

Our Honda CB 500 Lowering Kit Lowers the 2019 and 2020 Model Honda CB500 F/X/R Trio in either a 30mm OR 50mm variant.  In the rear we use a high quality replacement CNC Machined linkage arm in both 30mm and 50mm lower options.

The forks require a simple disassemble and installation of our 30mm destrokers and pre load spacers.  We slide the forks up through the triple clamps a further 20mm to match the rear for our 50mm option kit.  (as our destrokers only lower the forks 30mm, sliding forks through the clamps is only needed for the 50mm kit)

This kit is built to the same High Quality with the same materials that we run on our Australian Championship winning BMWS100RR and Honda CBR1000’s.

Our popular Honda CB500 linkage arm is made the exact same way we manufacture these high performance linkages that exceed 280KMPH each weekend!

In our shop we fit these kits in around 2.5hours.  Any good local MC dealer or workshop will have the ability to fit this kit easily.  Comes with detailed instruction easily followed by yourself or local mechanic.

KIT INCLUDES :

• Linkage Arm
• Alloy Adjustable Side stand
• Fork Pre Load spacers
• Fork De-strokers

HONDA CB 500 F/X/R LOWERING KIT

Our Honda CB 500 Lowering Kit Lowers the 2013 thru to 2018 Model Honda CB500 F/X/R Trio in either a 30mm OR 50mm variant.  In the rear we use a high quality replacement CNC Machined linkage arm in both 30mm and 50mm lower options.

The forks require a simple disassemble and installation of our 30mm destrokers and pre load spacers.  We slide the forks up through the triple clamps a further 20mm to match the rear for our 50mm option kit.  (as our destrokers only lower the forks 30mm, sliding forks through the clamps is only needed for the 50mm kit)

This kit is built to the same High Quality with the same materials that we run on our Australian Championship winning BMWS100RR and Honda CBR1000’s.

We supply linkage arms to  Factory Level Superbike teams such as ‘Team Honda Australia’ and the ‘Next Generation BMW team ’ bikes here in Australia.  These teams of course demand the best in both fit, performance and quality.  The CB500 linkage is made the exact same way we manufacture these high performance linkages that exceed 280KMPH each weekend!

In our shop we fit these kits in around 2.5hours.  Any good local MC dealer or workshop will have the ability to fit this kit easily.  Comes with detailed instruction easily followed by yourself or local mechanic.

KIT INCLUDES

• Linkage
• Side stand
• Fork Pre Load spacers
• Fork De-strokers

BILLET SIDESTAND

Krooztune Engineered CNC Machined Billet side stand to 30mm and 50mm lowered Honda Africa Twin CRF1000.

*Available also to suit a 50mm lowered CRF1000 Adventure Sport. 30mm Stands are underway and in production.

Manufactured using High Grade 6061 Alloy that simply bolts on and replaces the standard unit with a shorter length to retain the correct lean angle once parked.

We include centre stand modification instruction and sleeves with every billet sidestand. The centre stand will need custom modification to better suit the lowered bike. It will work ok with a lowered bike, but it is a little more difficult to operate and to get the bike into the upright centre stand position.

We provide the parts and instructions to complete these modifications to the centre stand. This involves fabricating the stand and cutting out the lowered amount. We provide steel sleeves (as shown in picture) for ease of alignment and welding, resulting in a factory level job that is super strong.  Centre stand sleeves/parts are included with the kit and are detailed in the fully pictured instruction manual.

This Kit Fits Honda Africa Twin CRF1000 2016-2020 models

• 2020 CRF1100A CRF1100D
• 2019 CRF1000A
• 2018 CRF1000A
• 2017 CRF1000 CRF1000A CRF1000D
• 2016 CRF1000 CRF1000A CRF1000D

The Sidestand is only available at present to suit a 50mm Lowered 'Adventure Sport' Model.  We have a 30mm Sidestand in production at present.  Please enquire via email regarding this.
