All new 2022 design
YZF Float Tunable posts to suit the new 29mm KYB 'SSS' cartridge fitted to most 2021- Yamaha models.
The all new 29mm cartridge form Yamaha is nearly all fitted with a more solid 'Trampoline' style midvalve. This offers great hold up but we find it sacrifices too much initial plushness for most riders.
As this all new Tramploine style mid valve setup contains many more individual shims than this float post, we find a setting easly arranged from the OEM shims in the std midvalve.

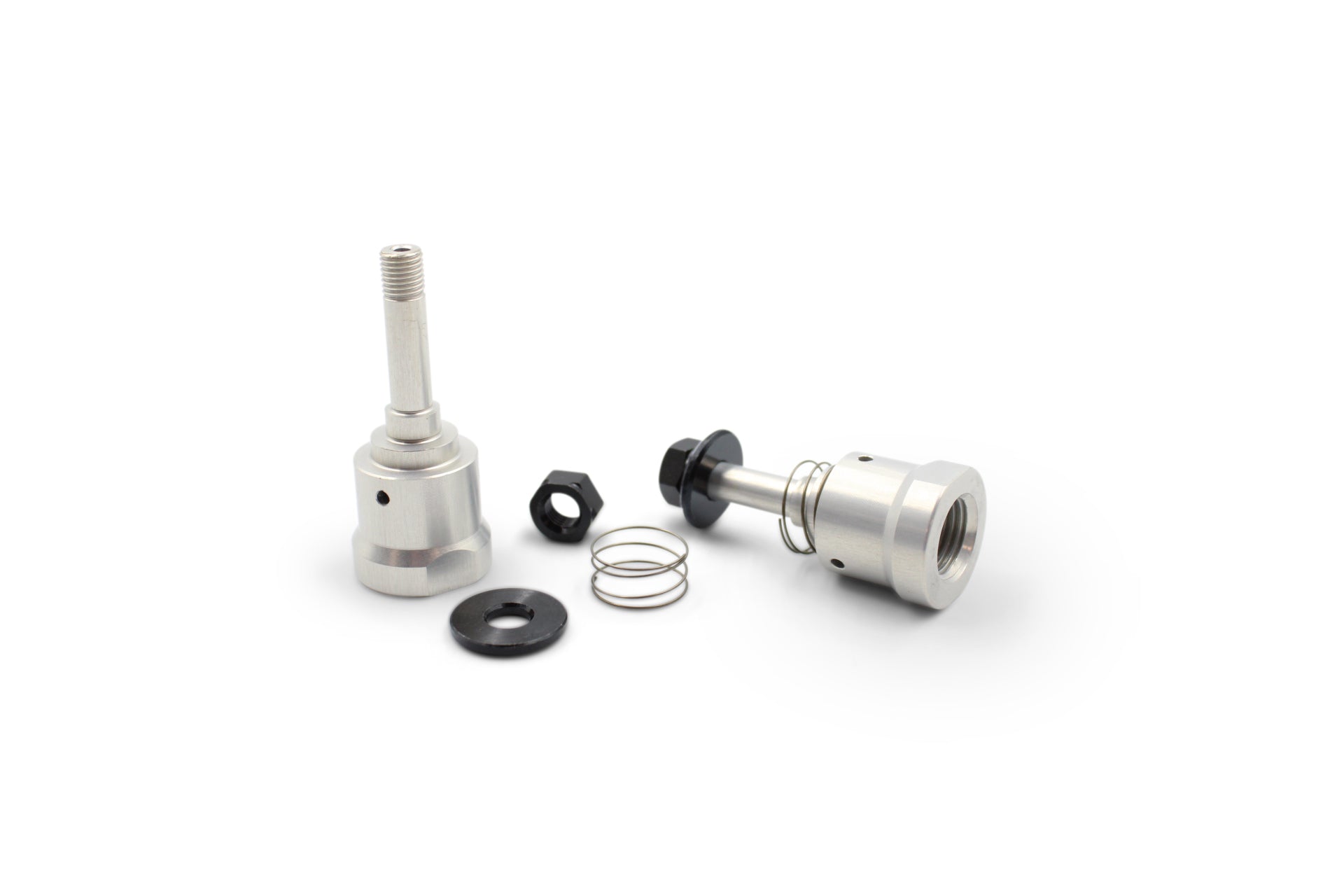

Example Installed in pic below to oem shafts using oem pistons and new shim arrangement :
We have redesigned this unit for 2022 and updated to include:
Kit includes

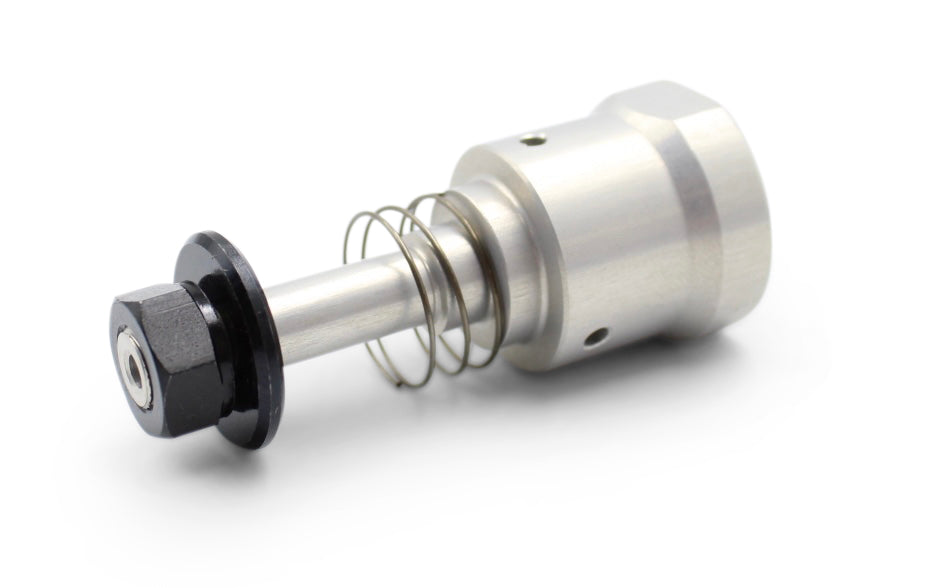

- Post assembly
- Light mid spring
- Custom Nut and top plate washer
For example only our most common mid valve shim arrangement stack to achieve common float of .25 - .3mm as below to fit our post :
|
Piston 21.12/4 |
| 18.12 |
| 16.12 |
| 14.12 |
| 12.12 |
| 10.2/2 |
| 12.15/1 |
| 12.3/4 (Spacer shims only) |
