Kawasaki KX450 19-22 / KX250 21-22 Adjustable Lowering Linkage -30mm
Kawasaki KX450 19-22 / KX250 21-22 Adjustable Lowering Linkage -30mm

Kawasaki KX450 19-22 / KX250 21-22 Adjustable Lowering Linkage -30mm

Regular price $168.00
/
Tax included. Shipping calculated at checkout.
Linkage

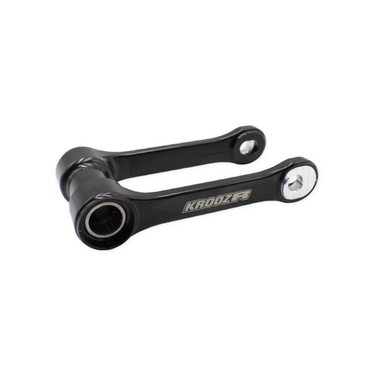

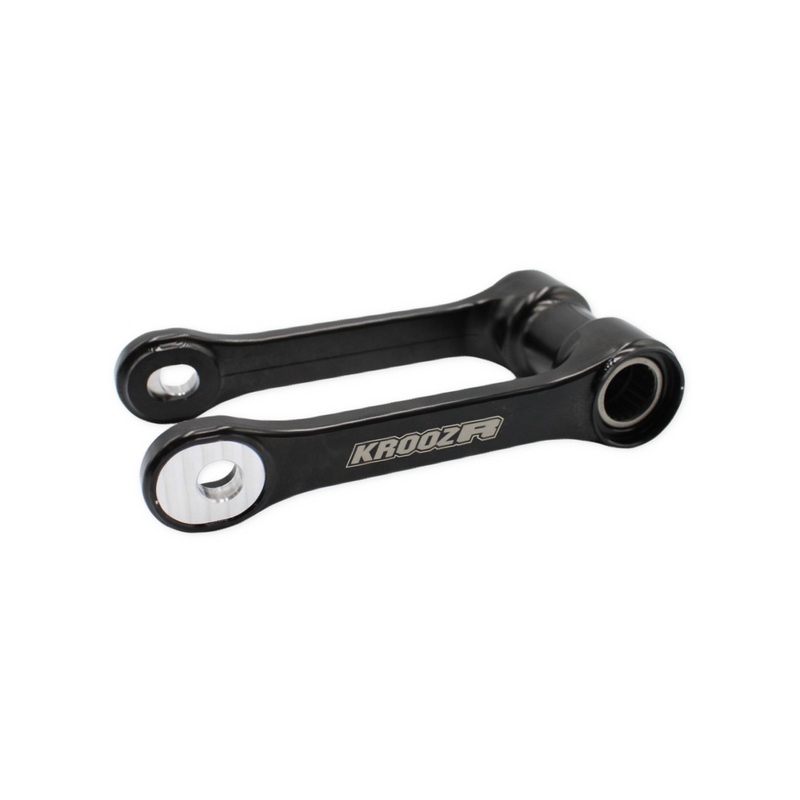

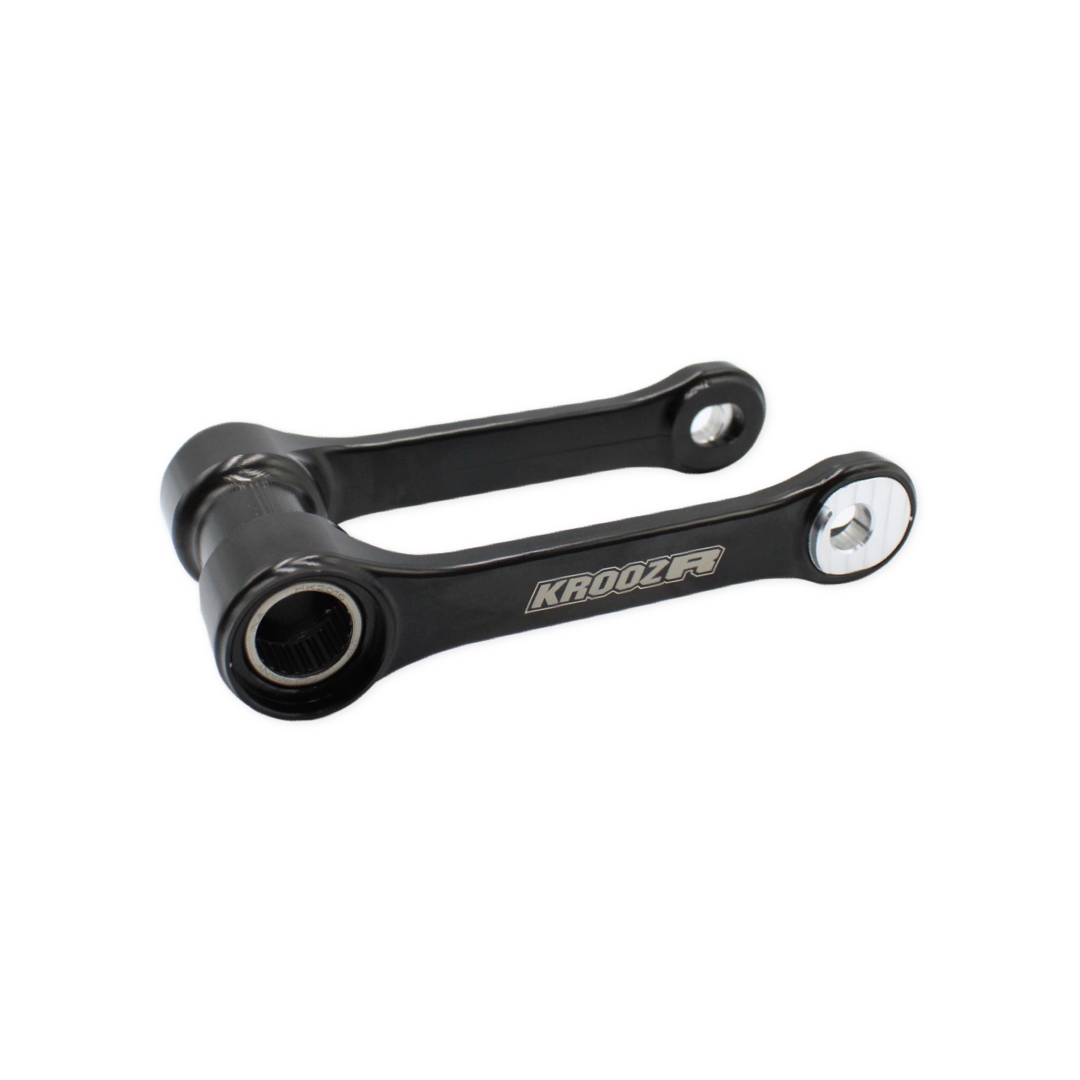

Adjustable Lowering Linkage designed to lower your Kawasaki KX450.  The Linkage is installed at -30mm option.  Reversing this button direction will allow 5mm lowering.



Lowering Button Installed - 30mm / 5mm

*Optional Button available to achieve 15mm / 20mm

Fits:

Kawasaki

KX450 2019-2022

KX250 2021-2022

Linkage includes Pre Installed Bearings for ease of fitment.  Seals and Bearing pin will need to be swapped across from the OEM linkage at time of install.

Instruction included

Designed and CNC Machined at Krooztune HQ here in Australia.

Machined from 6061 Alloy specifically sourced from NZ and USA.

Made in Australia

 0=5/30 2=15/20

Part # KT-KXF41LL30 (30mm/5mm)

Part # KT-KXF41LL30-2 (30mm/5mm and 15/20mm option)

Service Parts Available via catalog

Fork Seal Kits

Genuine KYB or Premium SKF Kits to complement the finest suspension builds

Genuine Slide Bushing

Friction Free suspension always install new slide bushing at service. Any dirt or build up in the teflon coating causes stiction and binding action

Genuine and Super Smooth

Eibach Ktech WP KYB

Only the best brands of springs. Outside of OEM we recommend Eibach and Ktech to ensure reliable accurate spring rates
