Showa 49mm Fork Setup Kit - A Pro

Showa 49mm Fork Setup Kit – A Level

Designed for fast B and 'A' level riders, the Showa 49mm Fork Setup Kit combines two of our most advanced suspension components into one elite package. This complete setup includes the Showa '32' Fork Piston Kit and the Showa 49mm Midvalve Post Assembly, delivering unmatched control, balance, and ride comfort. Transform your forks into a pro-level system with a setup that’s ready to handle big hits, fast tracks, and demanding conditions.

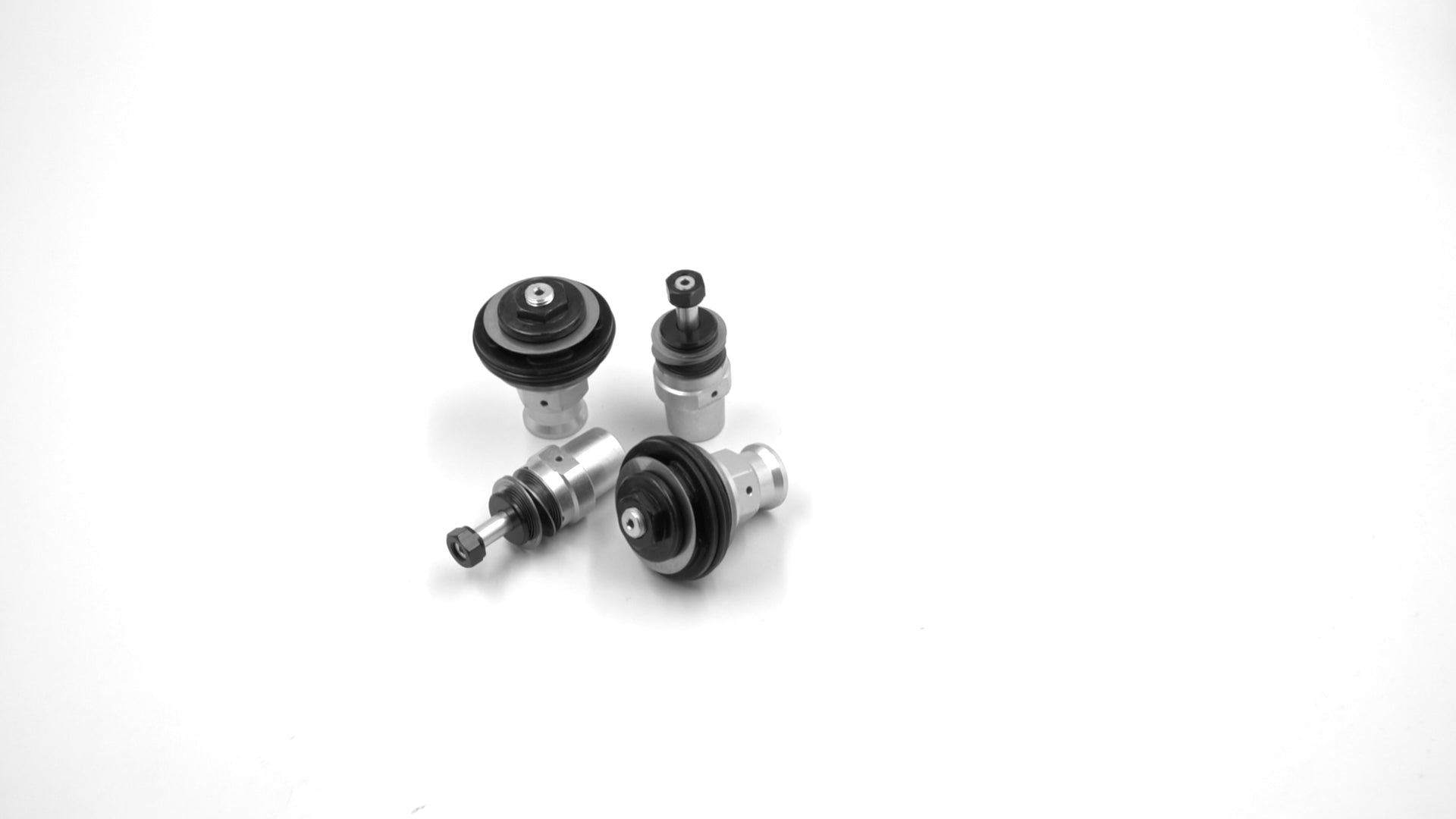

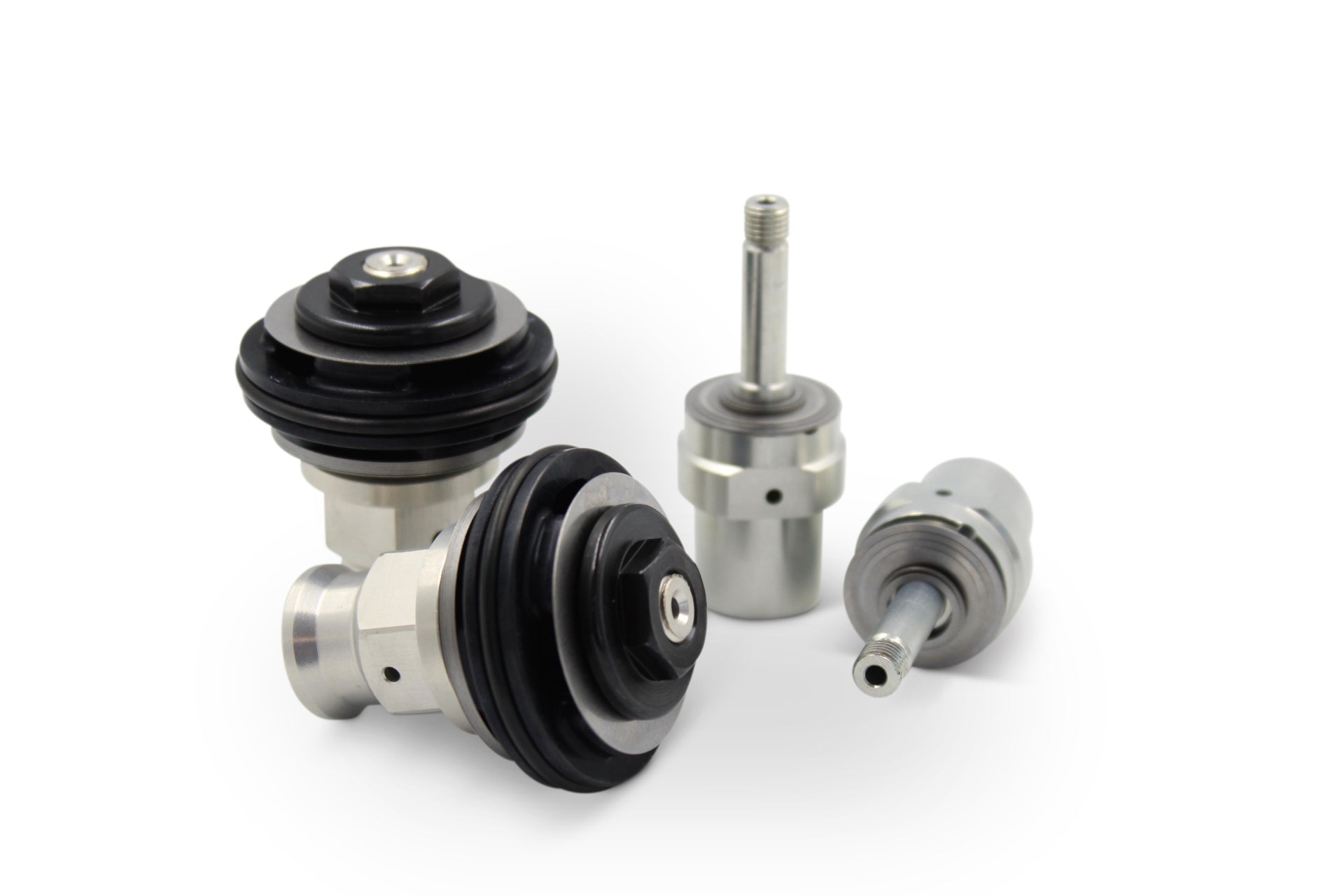

Kit Inclusions:

• Showa '32' Fork Piston Kit
• Custom-designed fork pistons to improve damping response already matched to bolt on posts. All pre assembled to spec
• Enhanced oil flow for optimal performance in rough, choppy terrain
• Engineered for better control, reduced harshness, and smoother ride feel
• Compression Shim setting and option shims
• Data / Specs included for both rebound and Midvalve compression recomendations for 2 settings

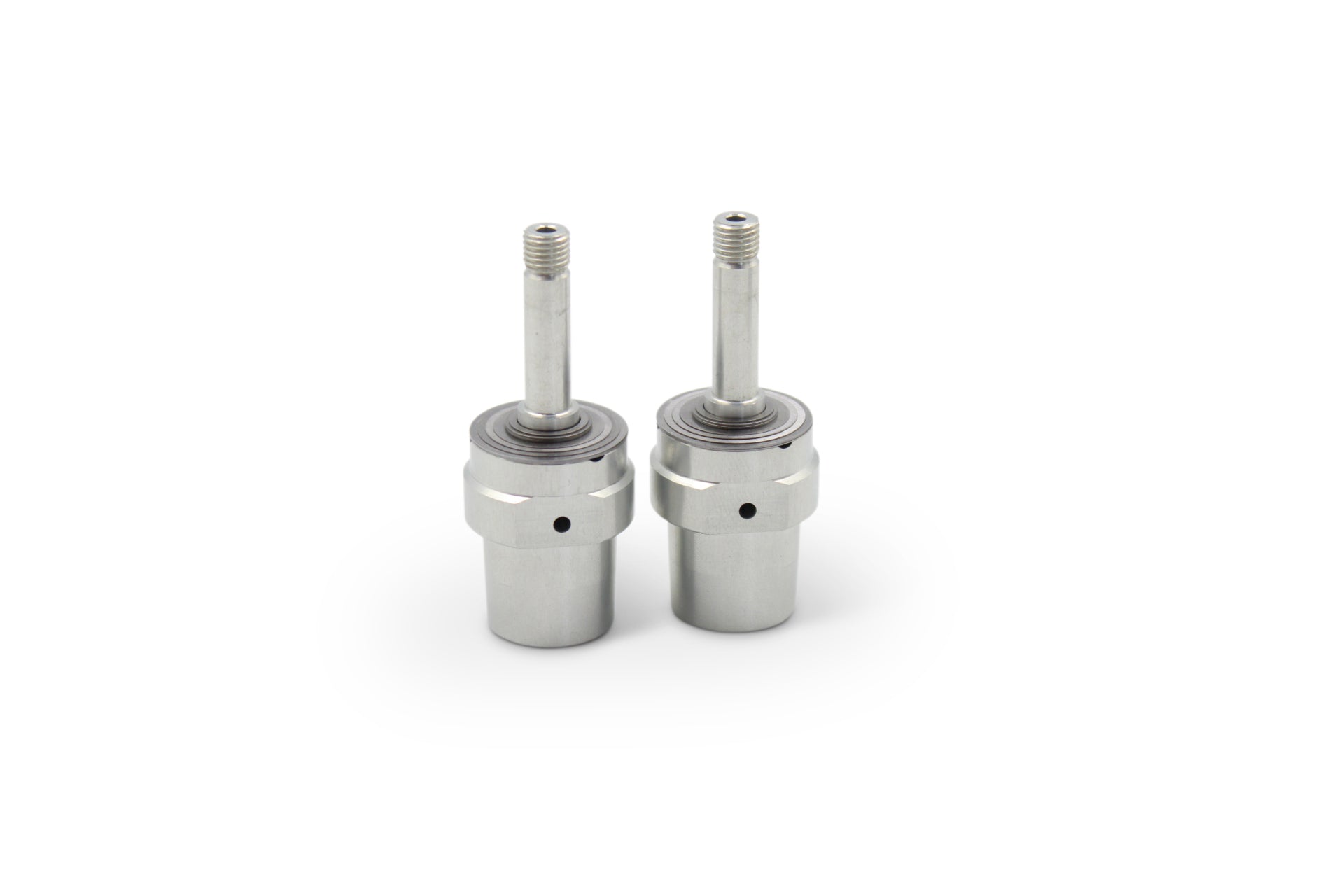

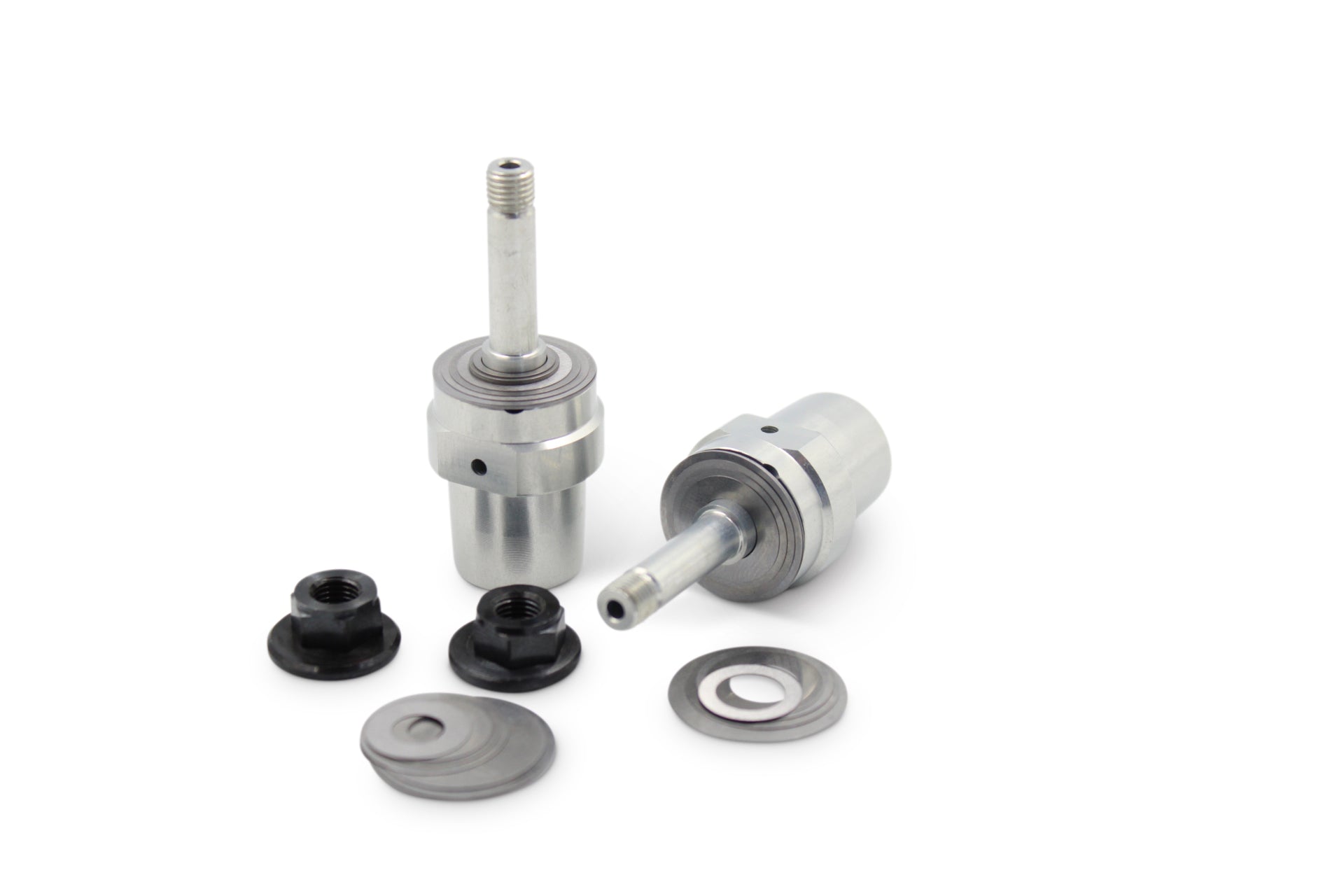

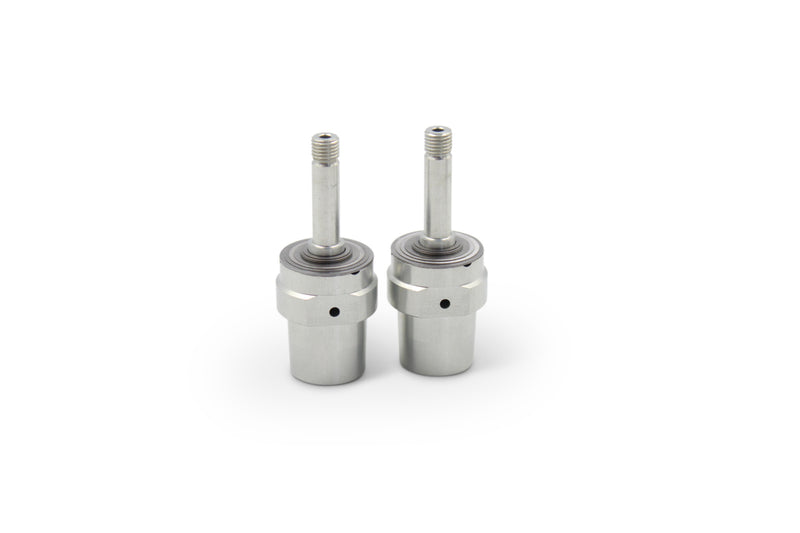

• Showa 49mm Midvalve Post Assembly
• 2 x Precision-Machined Midvalve Posts
• 2 x Custom Machined Surface Flat Washers
• 2 x Secure Locking Nuts
• Compression and rebound damping shim stacks ( uses OEM piston )
• Data and specs included for both rebound and Midvalve compression recomendations for 2 settings
• 2 settings included
• Fast B and A level compression settings are included.  Shims are setup to setting purchased but can be arranged easily with the supplied option shims to other setting.   Rebound setting is to match the fork spring rate installed at time of build.

Why Choose the Showa 49mm Fork Setup Kit?

• Unrivaled Fork Hold-Up: With this setup, you can install a softer main stack for better small bump compliance while maintaining firm control over big hits at high speeds.
• Total Damping Control: The Showa '32' Fork Piston Kit improves oil flow and damping response, delivering greater front-end traction, improved control, and reduced harshness.
• Perfectly Balanced Ride: Custom rebound and compression tuning through our midvalve assembly ensures a well-balanced, race-ready suspension that offer both hold up for fast rider but also a better in hand feeling than the hard harsh oem stiff fork setup.
• Pro-Level Performance: This setup mimics the damping characteristics of other elite suspension systems form other brands. Flipping the OEM damping balance internally for drastic improvements in control and ride feel in the Showa 49mm unit.

How It Works In OEM Showa forks, the top compression valve takes on most of the load, resulting in harshness and inconsistent feel. Our Showa 49mm Fork Setup Kit changes this with a "leaf-style" valving setup that shifts load and control to the midvalve. This allows for a softer main stack with more effective fork hold-up, improving comfort and reducing bottoming out. The '32' Piston Kit’s improved oil flow and shim damping response complement the midvalve system, providing a smooth, controlled feel no matter how rough the track gets bat speed.

Not for Beginners This aggressive fork setup is designed for advanced riders and fast racers who demand precise control, reliable hold-up, and damping suited for high-speed, high-impact racing. Slower or beginner riders may find the setup too firm for their preferences. However, for those chasing podium-level performance, this kit delivers a world-class suspension experience.

Take Your Forks to the Next Level Experience the power of a complete pro-level fork upgrade with the Showa 49mm Fork Setup Kit. Ride with confidence, knowing you’re backed by a system built to win.
