Krooztune

AER35 Flow Kit 50cc 26-

$395.00
Tax included. Shipping calculated at checkout.

Transform the OEM cartridge into a true race-ready suspension system.

The Krooztune AER35 Flow Kit is a complete bolt-in damping upgrade for the OEM AER35 fork cartridge fitted to KTM, Husqvarna and GASGAS 50cc models.

Rather than modifying or re-shimming standard components, the Flow Kit replaces the complete compression and mid-valve assemblies with fully developed Krooztune components, professionally assembled and ready to install.

Every kit includes a new compression piston, race-developed shim stack and our billet compression base featuring an external compression clicker, allowing riders to fine-tune compression damping — something the OEM fork simply doesn't offer.

Available in two fork travel configurations, allowing riders to retain standard fork travel or upgrade to an extended travel system with an additional 20mm of suspension action.


Fork Travel Options

OEM Travel – Standard Height

Designed as a direct replacement for the original damping assemblies, retaining the factory fork travel and geometry.

Ideal for riders who want significantly improved damping performance, comfort and adjustability without changing the original fork travel.

  • Retains OEM fork travel

  • Maintains factory suspension geometry

  • Direct bolt-in damping upgrade

  • Compatible with the Krooztune AER35 ATS standard travel kit

+20mm Extended Travel – Full Height Models

Our extended travel option includes a purpose-built +20mm extended damping post, increasing available fork travel by 20mm when combined with the matching Krooztune AER35 ATS +20mm Extended Travel Kit.

This upgrade provides more usable suspension movement to absorb bumps, braking impacts and hard landings, improving comfort, traction and control.

For correct operation and balanced fork travel, this option must be used with the matching Krooztune AER35 ATS +20mm Extended Travel Kit.

When installed as a complete system, the additional travel allows the forks to be raised through the triple clamps to maintain a front ride height close to standard while providing 20mm more suspension movement.

Our recommended performance setup is approximately 15–18mm of fork tube protrusion above the upper triple clamp, subject to final bike setup and clearance checks.


A Better Flow System

The standard AER35 cartridge uses a fixed compression base bolt with no external compression adjustment, limiting the ability to fine-tune damping performance.

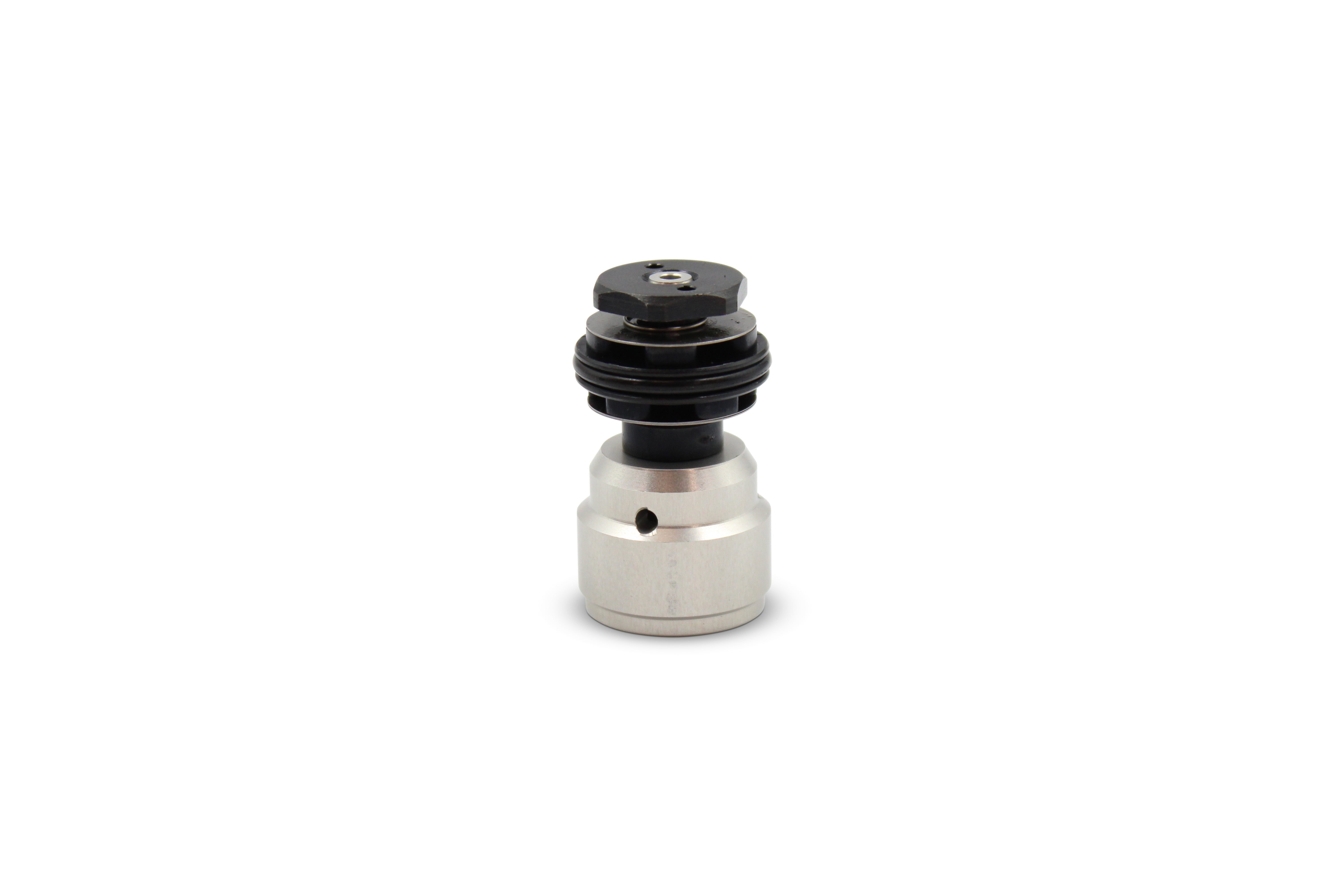

The Krooztune Flow Kit replaces this with our purpose-designed billet compression base featuring an integrated compression adjuster.

More importantly, the redesigned oil circuit introduces a controlled free-bleed system, allowing the fork to move much more freely over small bumps while maintaining excellent damping control throughout the stroke.

The result is dramatically improved comfort, increased front-wheel traction and a more compliant fork action without sacrificing support when the pace increases.

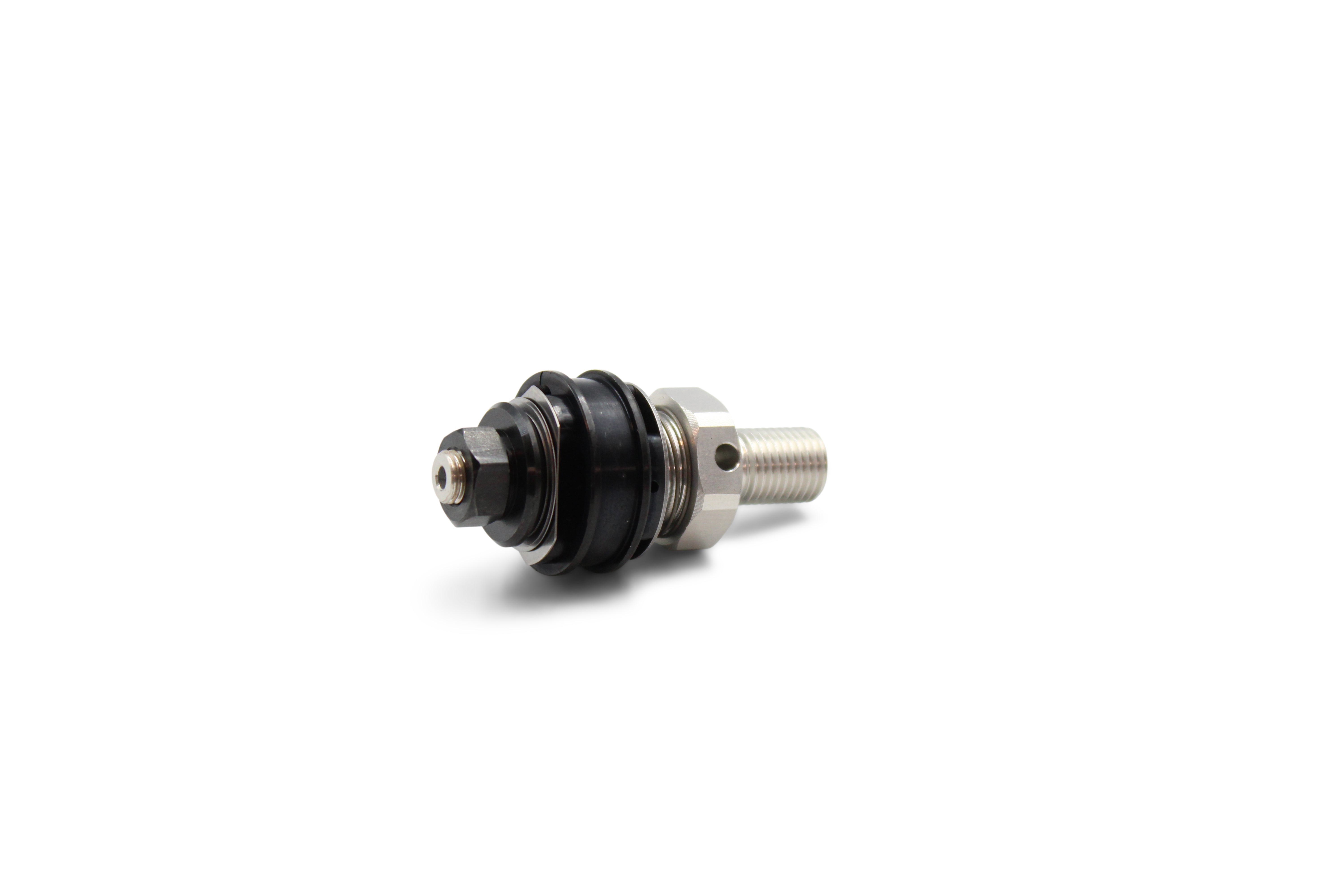

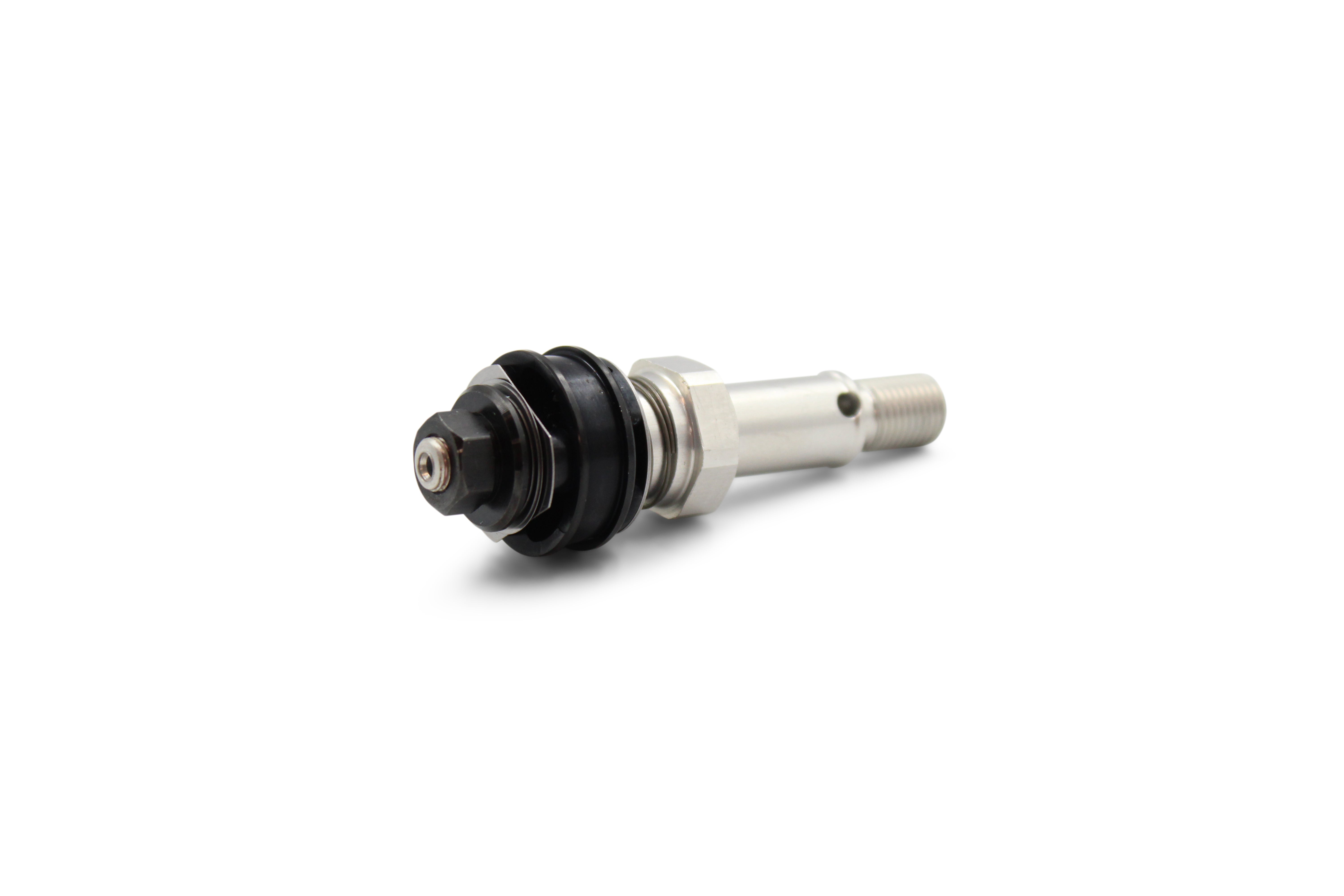

Complete Mid-Valve Upgrade

The Flow Kit also includes our complete bolt-in mid-valve assembly.

The OEM mid-post is replaced with a fully assembled Krooztune mid-valve and rebound assembly, already shimmed using our proven race settings.

This provides the correct balance of compression support and rebound damping specifically developed for modern 50cc racing.

The +20mm Extended Travel option incorporates our longer damping post to match the additional travel provided by the ATS Extended Travel Kit.

Simply install the assembly, set your clickers and ride — no re-valving, no guesswork and no shim stack building required.


Rider-Tuned Valving Options

Every AER35 Flow Kit is supplied with our proven setup specifications, developed through extensive race testing on KTM, Husqvarna and GASGAS 50cc models.

Three compression valving specifications are included, allowing the fork to be tailored to the rider's weight, ability and riding style.

  • Comfort Spec – Maximum comfort and traction for lighter riders and developing racers.

  • Race Spec – Our recommended all-round setting, providing the ideal balance of plushness, support and control.

  • Pro Spec – Increased damping support for heavier, faster and more aggressive riders.

The kit also includes two rebound tuning specifications, matched to the recommended spring rates, ensuring the fork remains balanced throughout the stroke.

All optional tuning shims required to achieve these settings are supplied with the kit, allowing future changes without purchasing additional components.

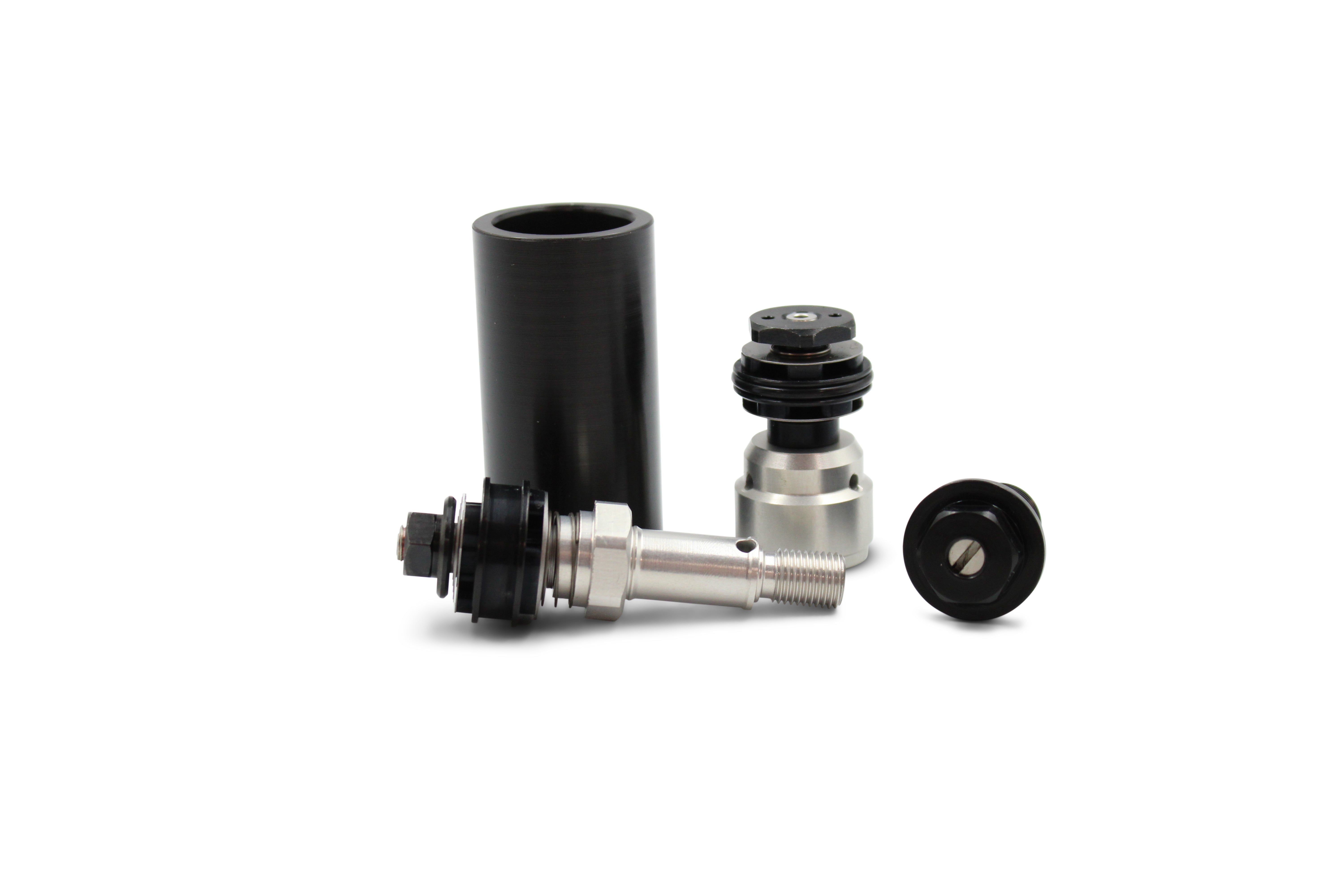

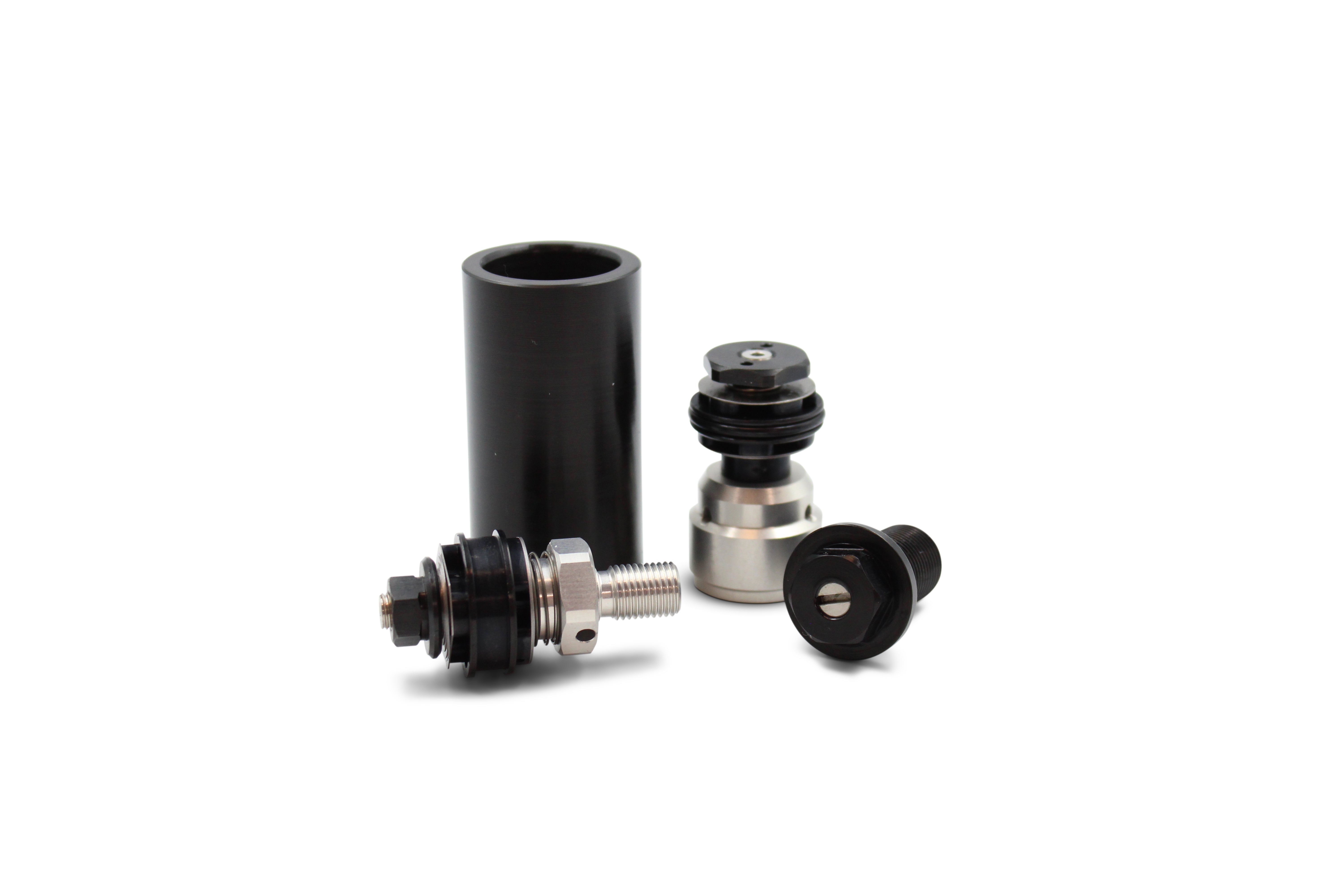

Kit Includes

  • Billet compression base with external compression clicker

  • Compression piston with race-developed shim stack

  • Complete bolt-in mid-valve and rebound assembly

  • OEM or +20mm extended travel damping post (selected at purchase)

  • All required hardware and sealing components

  • Optional tuning shims

  • Comprehensive setup and tuning guide


Features

  • Complete bolt-in damping upgrade for the OEM AER35 cartridge

  • Available in OEM Travel or +20mm Extended Travel

  • Extended travel option provides 20mm additional fork movement when paired with the matching ATS kit

  • New compression piston with race-developed shim stack

  • Billet compression base with external compression clicker

  • Controlled free-bleed circuit for improved small-bump compliance

  • Complete bolt-in mid-valve and rebound assembly

  • Professionally assembled and pre-valved — no initial shimming required

  • Retains standard rebound clicker adjustment

  • Easy installation using the OEM cartridge

  • Three compression specifications and two rebound settings included

  • Developed for KTM, Husqvarna and GASGAS 50cc AER35 forks


Complete Your Suspension Setup

Designed to work seamlessly with the Krooztune AER35 ATS Air to Spring Kit and Krooztune Shock Flow Kit, the AER35 Flow Kit forms part of the complete Krooztune Flow Range, delivering balanced suspension performance from front to rear.

Whether you're setting up a first race bike or chasing national-level results, the AER35 Flow Kit transforms the standard fork into a highly adjustable, race-developed suspension system.

More comfort. More traction. More control. And with our +20mm Extended Travel option, more suspension travel when you need it most.
