Yamaha YZ85cc Complete Suspension Setup Kit
Yamaha YZ85cc Complete Suspension Setup Kit
Yamaha YZ85cc Complete Suspension Setup Kit
Yamaha YZ85cc Complete Suspension Setup Kit
Yamaha YZ85cc Complete Suspension Setup Kit

Yamaha YZ85cc Complete Suspension Setup Kit

Regular price $695.00
Tax included. Shipping calculated at checkout.

Complete Front and Rear Suspension setup kit to suit the Yamaha YZ85cc Racer.

Fits Yamaha YZ85 2018-2024 Models

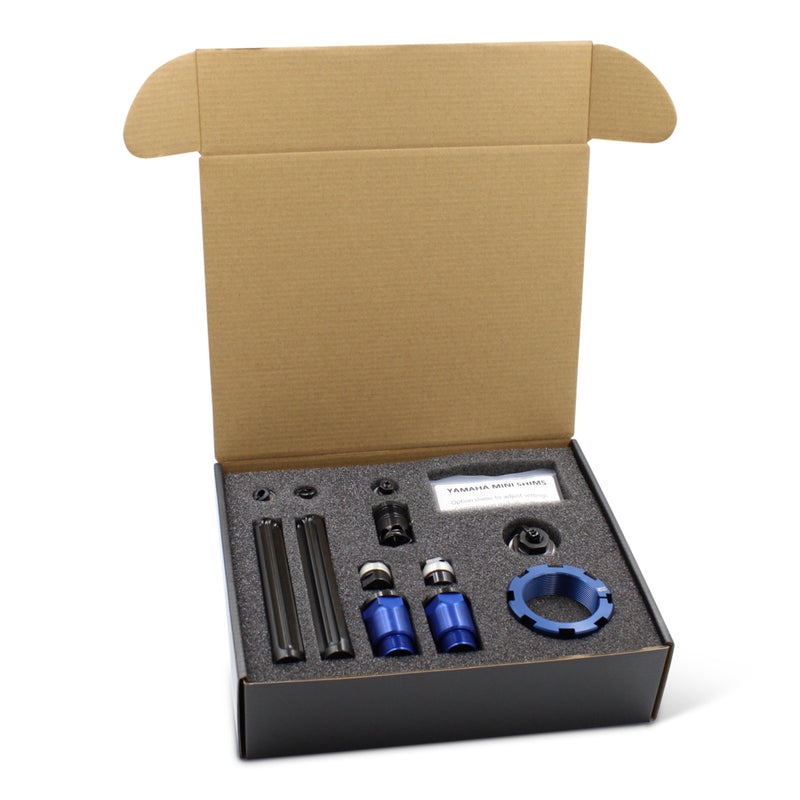

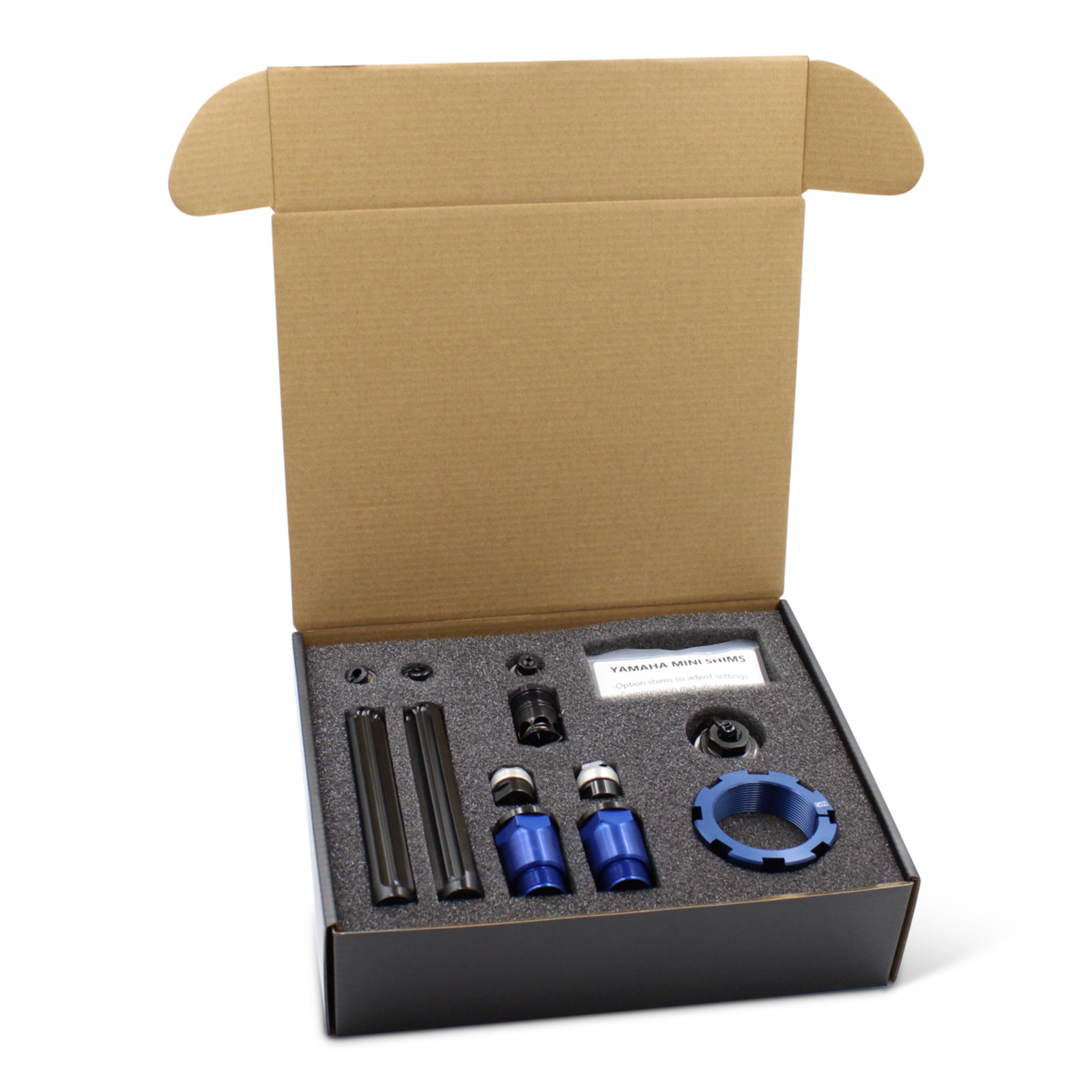

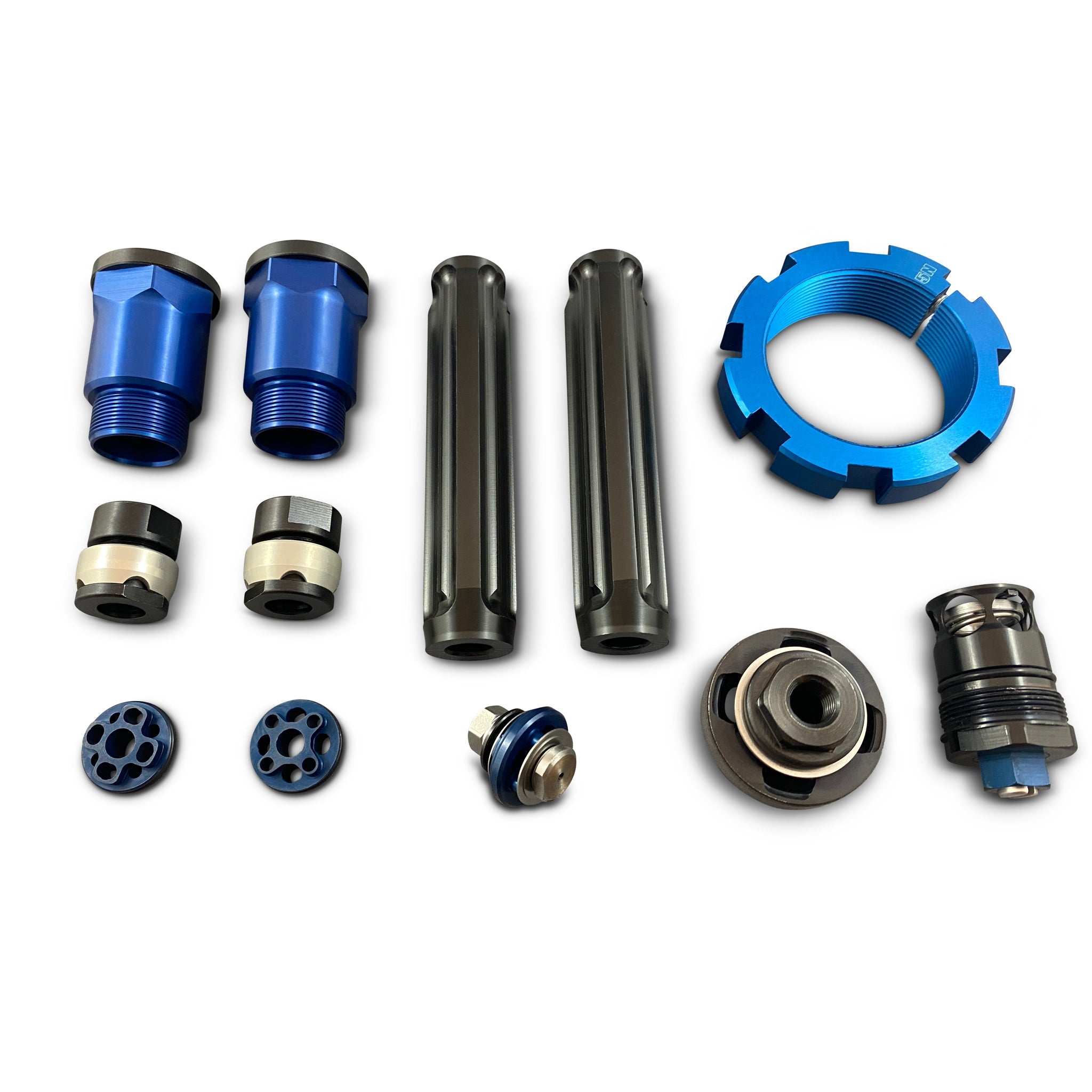

This kit includes:

Fork Parts

  • Spring Guides
  • Hydraulic Bottoming System
  • 17mm Face Compression pistons and shims
  • Mid valve shim stack setting including Shims

Shock Parts

  • High and Low speed compression adjuster
  • Main piston assembly and shim setting
  • Fast adjust alloy lockring
  • Specification with 3 levels of setup A/pro, B and C level racers.
  • Decal set.

KYB Fork kit Features-

A smoother fork action with great hold up is achieved in the front end resulting in more grip, faster turns and a much improved and settled fork.  This is achieved by adding our engineered Hydraulic bottom out and spring guidance system working alongside our kit fork parts to allow an exceptionally smooth and tuneable front end.

  • Better bottoming resistance
  • More hold up at speed
  • Smoother bump absorption
  • Multiple fork settings to tune for rider ability and speed supplied.

KYB Shock Kit Features-

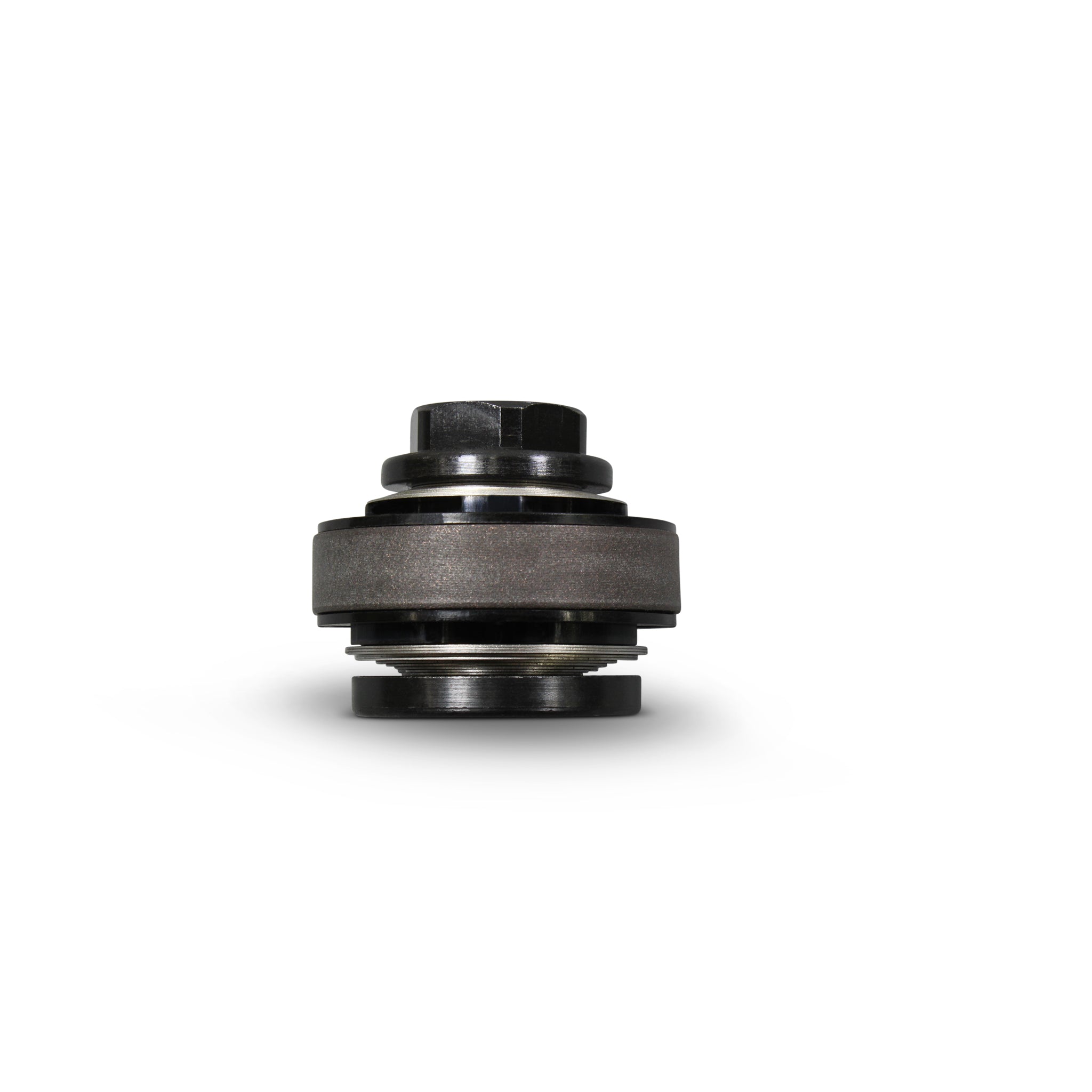

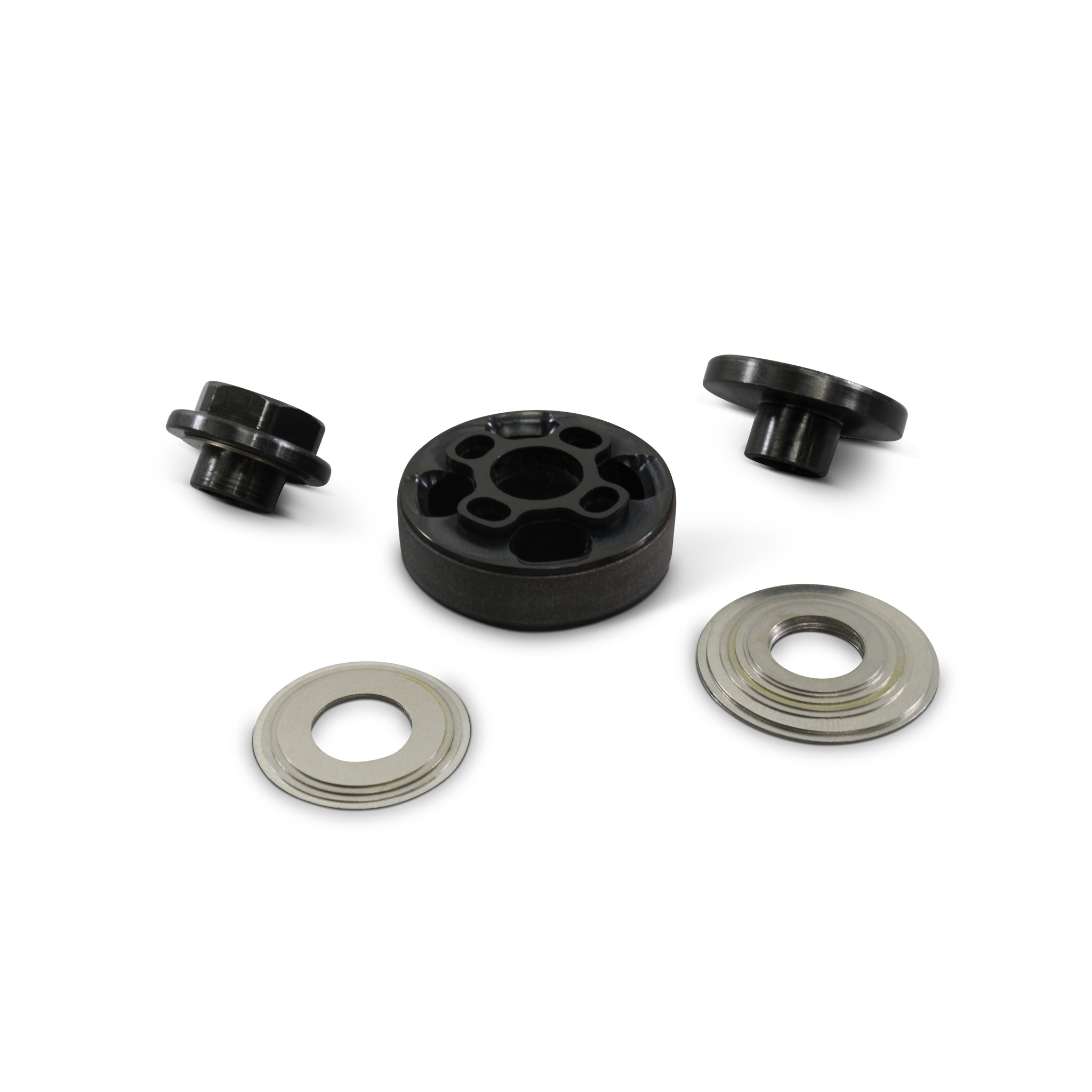

In the rear we use our complete bolt on shock piston and shim stack assembly to allow a super easy install.  Our track tested setting is already pre-arranged and ready to bolt on with our piston assembly.  To maximise strength and for a factory level finish, this piston kit comes with a billet CNC machined shaft nut, engineered for maximum thread coverage and security.

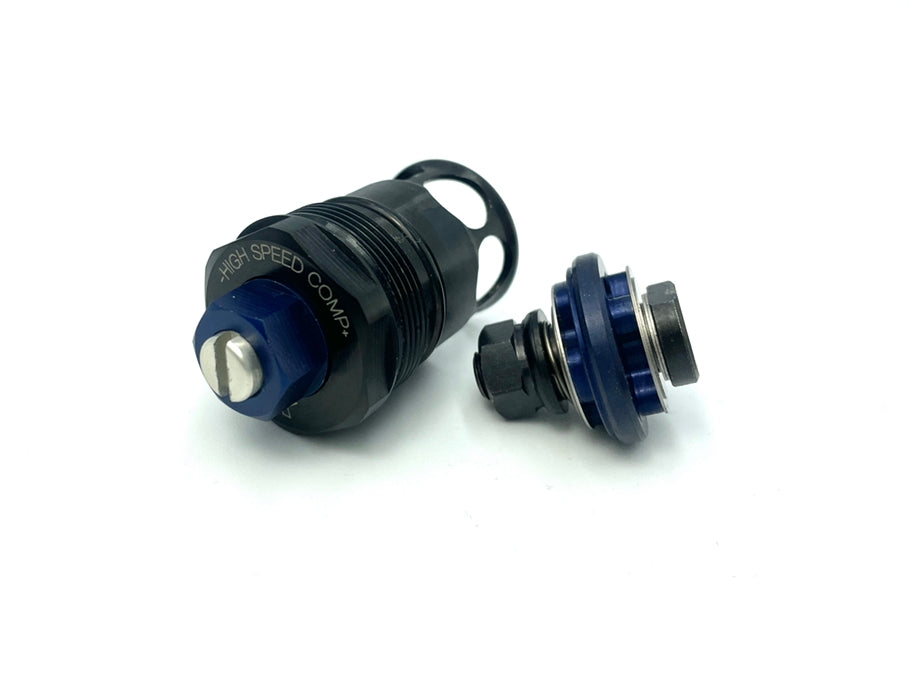

Complimenting the rear piston assembly our world first YZ85 ‘HIGH/LOW Speed’ compression adjuster brings the rear unit’s adjustability in line with senior YZ MX models.  Clicker and settings supplied.

Finished off in the rear end with our CNC Alloy machined Lock ring, you can tune rider sag trackside in seconds.   The result is a rear end that tracks and is more compliant than the firm wooden like OEM rear end.

  • More drive
  • Improved bump absorption
  • Much more stability in the rear end through rough, choppy conditions.

This complete setup has been thoroughly track and suspension dyno tested and comes with multiple setup/shim options to suit rider weight, tracks and speed.

      Service Parts Available via catalog

      Fork Seal Kits

      Genuine KYB or Premium SKF Kits to complement the finest suspension builds

      Genuine Slide Bushing

      Friction Free suspension always install new slide bushing at service. Any dirt or build up in the teflon coating causes stiction and binding action

      Genuine and Super Smooth

      Eibach Ktech WP KYB

      Only the best brands of springs. Outside of OEM we recommend Eibach and Ktech to ensure reliable accurate spring rates
