Xplor EXC / XC-W Shock Upgrade Kit - 2 Stroke 2017-2023
Xplor EXC / XC-W Shock Upgrade Kit - 2 Stroke 2017-2023
Xplor EXC / XC-W Shock Upgrade Kit - 2 Stroke 2017-2023

Xplor EXC / XC-W Shock Upgrade Kit - 2 Stroke 2017-2023

Regular price $395.00
Tax included. Shipping calculated at checkout.

Gen2 Xplor Shock upgrade it for the KTM EXC/XC-W  Offroad Trail models.

Kit Fits : All KTM Xplor Shocks 2017-2023

After hours on the trail with our test bike and riders we have put together an upgrade for the hard fast acting KTM Xplor shock. After trying various valving settings initial plushness was not completely achieved until we installed a bleed circuit  into the compression pathway just like other opposition brand suspension have as oem.

The XPLOR shock has no ‘give’ on very initial action and softening the valving or setting only resulted in wallow and blow out. Our shaft bleed mod comes with a new compression valve spacer , CNC machined ready to bolt straight onto the shock shaft (replacing the oem shaft spacer swap in / out).  A simple procedure to drill the new bleed circuit is then required (very easy to do with our supplied drill bit and instruction).  All valving is ready to go on and assembled as per shock building procedures.

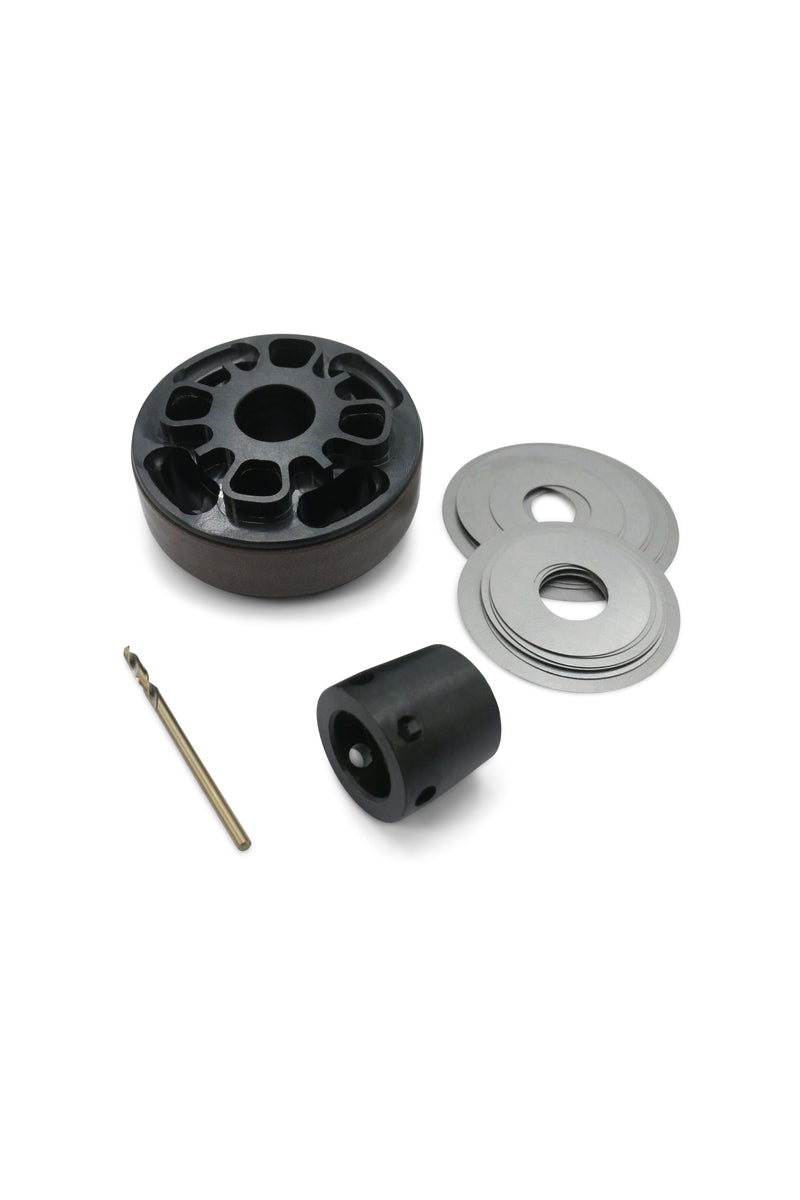

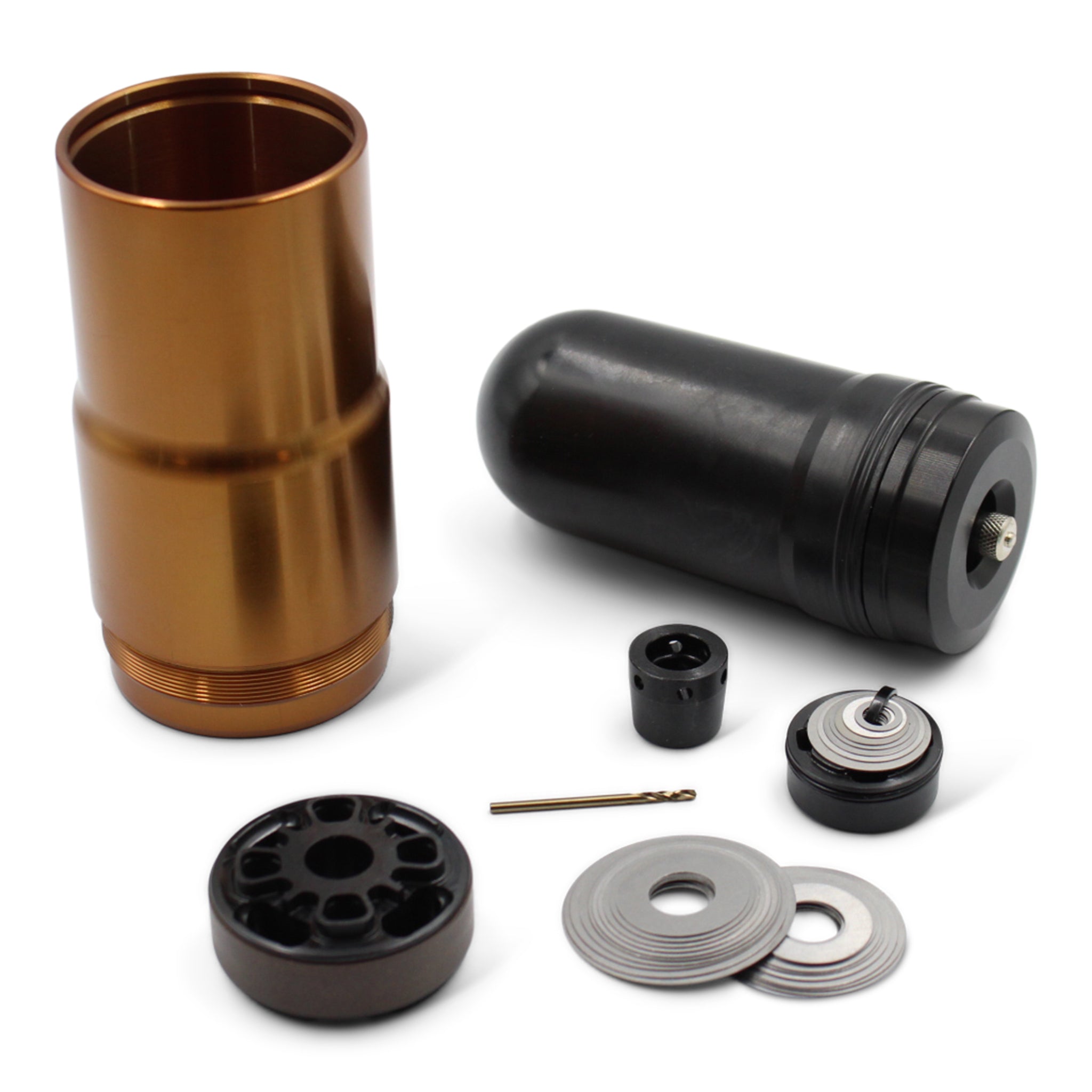

Kit Includes :

  • Shock 4 Port Piston Complete Valving/Shims setting

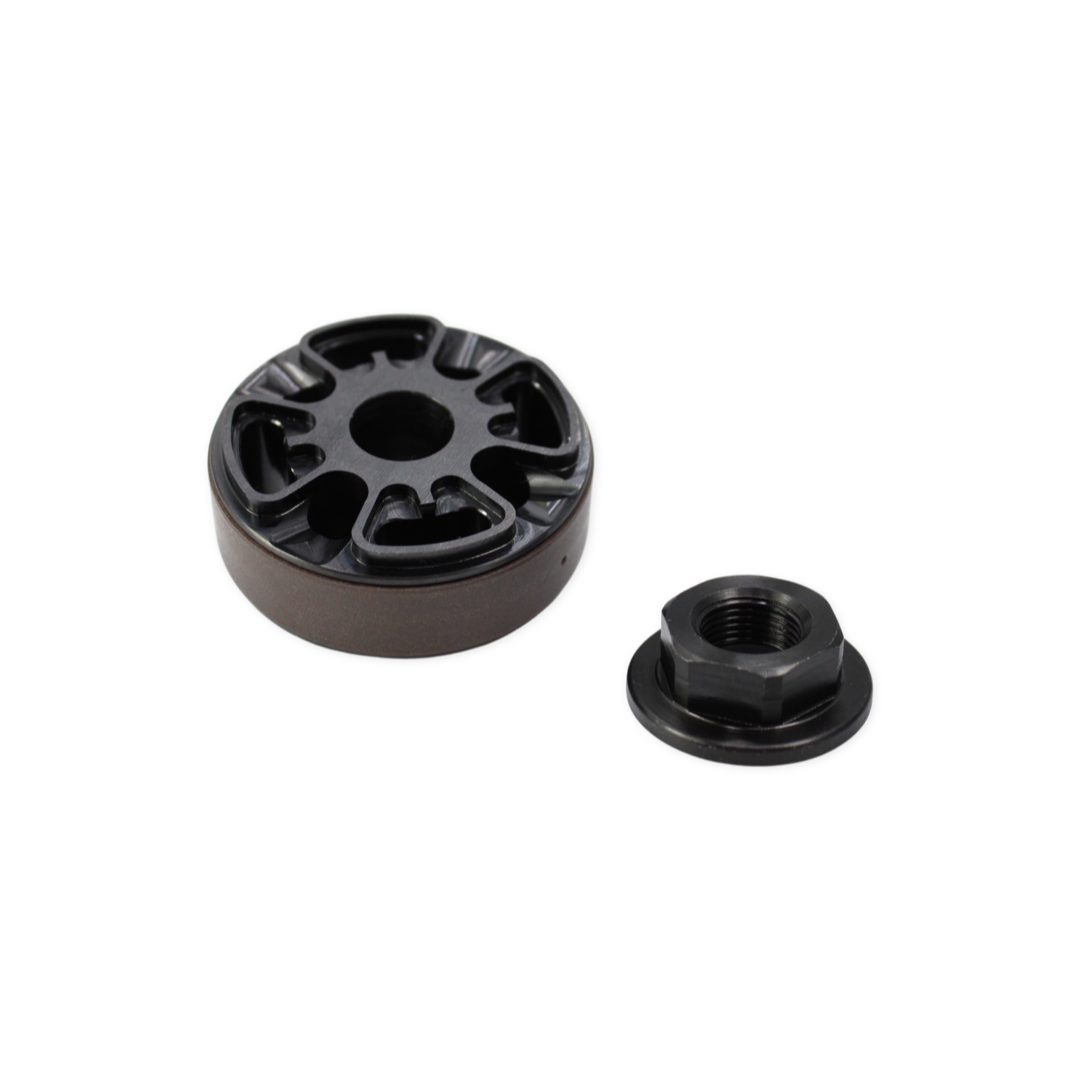

  • High speed Piston assembly including valving setting
  • Bleed / Bypass post and Drill bit for shock shaft modification
  • Xplor Nitrogen Bladder Conversion
  • Clicker setting and information
  • Specification to adjust base valving installed setting
  • Instruction

**Optional shims included to adjust to all 3 setup's. Medium setting is pre installed on both compression and rebound, allowing minor simple changes if required at all from our setting recommendation.


  1. Soft - Suits plush setting, absorbs all initial hits with ease.  We have great results with this with our Vet / Older riders that don't want to get beat up all day on long trail rides
  2. Medium - Average fitness, Average speed.  Great all round setting . A balance between soft and firm. Bump absorption with great hold up.
  3. Firm - Ex Mx racer or fit/fast/tall guy riding on the trails at pace?  This setting works well for guys that like a firmer MX style feeling.  Rip hard fast Trail's ease.  Still not too firm but enough to charge hard. This setting was developed with our in house Vet MX racer after loving testing on the KTM EXC range.

Shock Parts should be fitted by a competent suspension tuner or service shop

Service Parts Available via catalog

Fork Seal Kits

Genuine KYB or Premium SKF Kits to complement the finest suspension builds

Genuine Slide Bushing

Friction Free suspension always install new slide bushing at service. Any dirt or build up in the teflon coating causes stiction and binding action

Genuine and Super Smooth

Eibach Ktech WP KYB

Only the best brands of springs. Outside of OEM we recommend Eibach and Ktech to ensure reliable accurate spring rates
