Yamaha YZ65 Black Series Fork Setup Kit

Fits Yamaha YZ65 bikes All

Improved internals. Smoother action. Custom tuned to you.

The Krooztune Black Series Fork Setup Kit takes our proven YZ65 fork upgrade further, combining improved spring guidance, a redesigned hydraulic bottoming system, new compression pistons and a custom damping setup built around your rider.

Drawing on years of Krooztune testing and an extensive setting bank, each kit is configured to suit your rider weight, riding discipline, ability and preferred suspension feel. From a developing junior chasing comfort and confidence to an experienced racer needing stronger support, your selected setting comes installed in the kit, ready for fitting into your forks.

A better foundation for performance

The standard KYB fork provides a solid starting point, but its basic spring guidance, limited bottoming control and heavy rebound damping leave room for improvement.

With less travel available than the YZ85, the YZ65 needs smooth, responsive action that allows lighter riders to use the travel effectively. Excessive rebound damping can prevent the fork from recovering quickly enough between bumps, contributing to a harsh, unsettled feel.

The Black Series kit addresses these mechanical limitations alongside the damping. We rework the heavy rebound and balance it with compression settings developed around our new piston design, delivering a super-smooth fork that still holds up for little racers.

Improved spring guidance and alignment

Our updated design integrates the bottoming piston into the spring guide, keeping these components true and aligned as they work together.

This arrangement improves spring guidance and promotes smooth, consistent movement. It also simplifies cartridge assembly and servicing, making the components easier to align during a rebuild.

Redesigned hydraulic bottoming system and main stack compression pistons

The improved hydraulic bottoming system delivers more controlled resistance towards the end of the stroke, helping reduce harsh bottoming on heavy landings and bigger impacts.

Our new compression piston design works with the rider’s custom damping setting to balance easy initial movement with support deeper in the travel. Combined with the reworked rebound, it helps the fork recover between bumps and maintain a comfortable, responsive feel—especially important for smaller, lighter riders.

Years of data. Your individual setup.

This is more than a hardware upgrade with a single setting for every rider.

Our extensive setting bank gives us a proven starting point for each order. We use your rider details to select and build a coordinated compression, mid-valve and rebound setup suited to your needs.

Choose your riding discipline—motocross, off-road or supercross—then provide your weight, ability and preferred feel. Whether the goal is plush comfort, balanced club-race performance or firmer support for faster racing, we configure the kit accordingly.

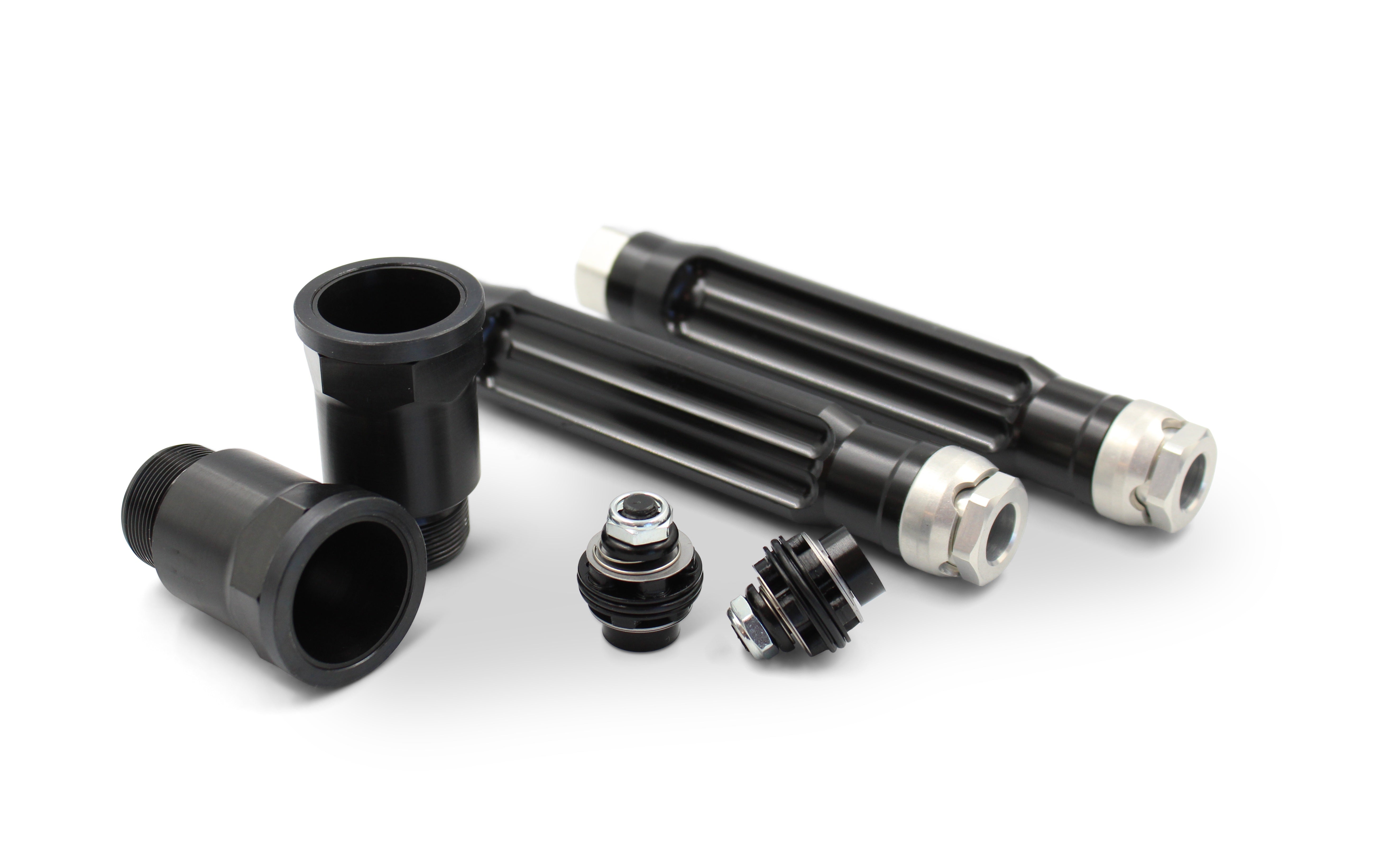

Kit includes

• Updated spring guides with integrated bottoming pistons

• Improved hydraulic bottoming system

• All-new 17 mm face compression pistons

• Custom mid-valve shim stacks

• Custom base compression shim stacks

• Rebound tuning shims matched to your setup

• Specification sheet detailing your supplied setup

Enter your rider details when ordering. We build your Black Series kit with your custom setting installed—ready for fitting into your forks.
