Big Piston Flow kit to suit current generation (2020 on) WP35 Forks.
Kit fits:
KTM / Husqvarna / GasGas 50/65cc bikes 2020-2023
Installation Tool is Required - WP35 Socket Install Tool
A great tunable cost effective solution to transform the OEM WP35 system into a plush action allowing less rider fatigue, improved turn in and more stabilty accross bumpy terrain. This kit includes all valving and 'air to spring' conversion parts.
A fork spring to match the OEM spring is required if you wish to convert the system to a a true dual spring fork, and is our best setup recomendation to do so. (these bikes have one spring in them in OEM trim) A much smoother less sticky action is produced easily with a conventional dual spring setup.

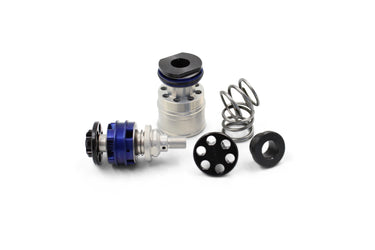

Full Kit includes:
- top out springs
- WP35 Flow Piston assembly
- Spring convserion parts
- Step by step detailed install instruction
- Install tool available see Install Tool
Spring Recomendation Please note- 50cc and 65cc bikes come with already a single fork spring as OEM to balance with the Oem Air system. We recommend replacing the Air system with our spring conversion parts included in this kit and then balanced with a single spring ( to replace the air ). This will convert fork to dual spring and improve bump action and feeling.
Match with a single spring or a pair of new springs to tuners / suspension builder recommendation.
We can easily assist with spring recommendation via email or phone
contact Info@krooztune.com or 03 9720 0745 as recommended below.
Spring Recommendation / guide : **Some springs not available as a pair
50cc Bikes -
| 15-30kg |
1x 24n Spring used together with oem spring
|
65cc Bikes -
| 25-30kg |
1x 26n or 1x 28n for fast rider ( used together with oem Spring |
| 30-35kg |
1x 28n ( used together with oem spring ) |
| 35-40kg |
28n pair |
| 40-45kg |
1x 30n ( used together with oem spring )
|
| 45kg + |
32n pair |
